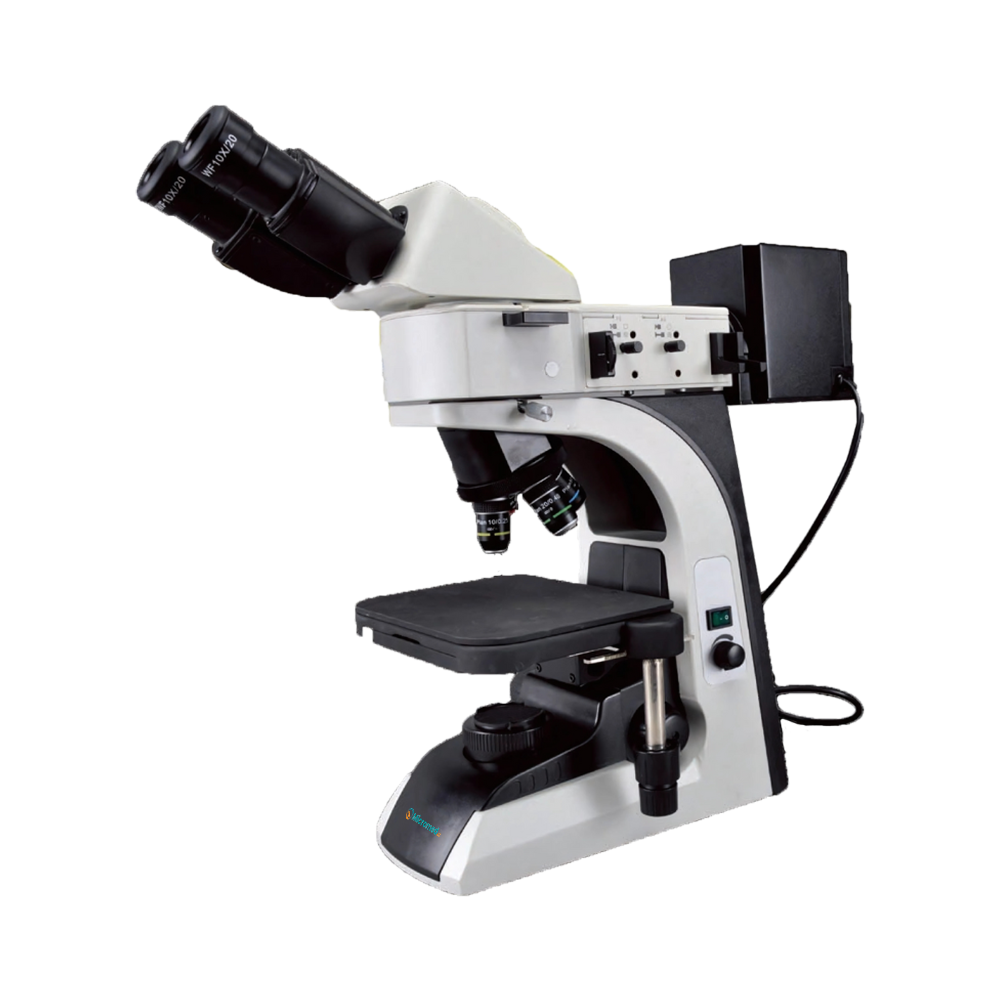

Metallurgical Microscope MMMM-A107 offers eyepieces WF10X/20 and expanded range of objectives. Featuring an infinite optical system, it delivers high-resolution, distortion-free imaging. Built with backward quintuple nosepiece, allowing smooth and efficient magnification changes. Its dual Köhler illumination system includes both 12V/50W and 12V/20W halogen lights. Our microscope equipped with a polarizer and analyzer enhances contrast and clarity.
Catalog| Optical System | Infinite optical system |
| Viewing Head | Hinged type binocular viewing head, inclined at 30° |
| Interpupillary Distance | 48 to 75mm |
| Eyepiece | WF10X/20 |
| Objective |
4X/0.10/∞/- LWD 20.7mm 10X/0.25/∞/- LWD 7mm 20X/0.4/∞/0 LWD 5mm 50X/0.75/∞/0 LWD 1.3mm 40X/0.65/∞/0.17 LWD 0.6mm 100X/1.25/∞/0.17 LWD 0.14mm |
| Focusing |
Coaxial coarse and fine adjustment Fine division 2μm Moving range 30mm |
| Nosepiece | Backward quadruple nosepiece |
| Stage | 230×150mm |
| Moving Range | 78mm×54mm |
| Kohler Incident Light |
12V/50W Halogen light 12V/20W Halogen light Polarizer and analyzer Green, Gray filter and Ground glass |
| Micrometer Scale | 0.01mm |
Extra wide field eyepiece with scale of crosshair
Infinite plan achromatic objective
Double-layer mechanical stage
Powerful transmitted and reflected system
Center and brightness-adjustable illumination
Metallurgical Microscope MMMM-A107 is designed for metallographic analysis in research institutions, universities, and industrial laboratories. it is suitable for metallurgical studies, quality control, and failure investigations inmetals, ceramics, and polymer coatings.
