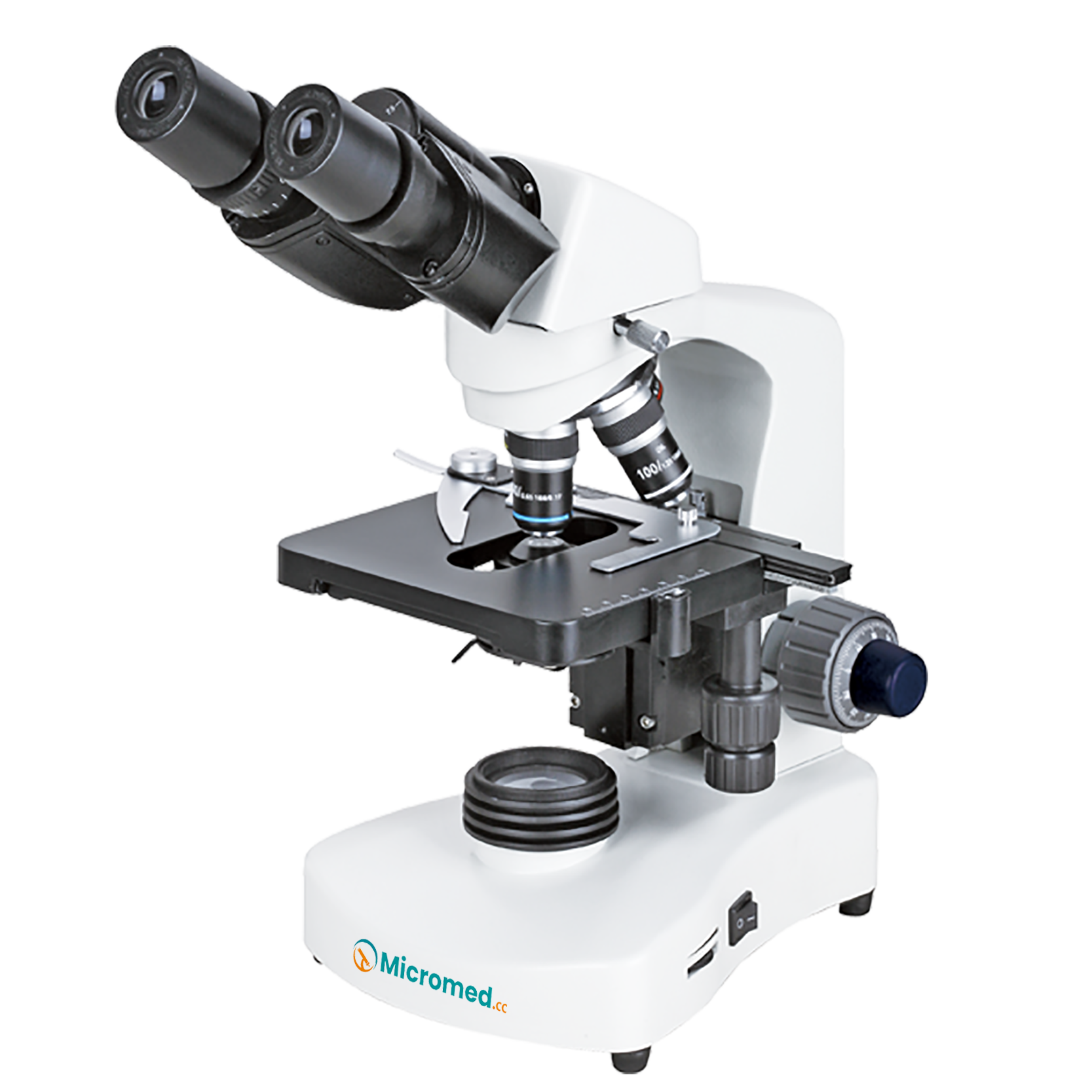

Biological Microscope MMBM-A104 offers achromatic objectives, WF10X/18, and P16X/11 eyepieces ensuring sharp imaging. Equipped with S-LED and halogen illumination for optimalcontrast. It features a backward quadruple nosepiece that allows quick magnification change. Built with sturdy framework, it ensures stability for prolonged observation. Our microscope with a fine focusing system of 0.004mm stroke provides exceptional clarity.
Catalog| Viewing Head | Hinged type Binocular Head, Inclined at 30° |
| Interpupilary Distance | 48 to 75mm |
| Eyepiece |
WF10X/18 P16X/11 |
| Objective | 4X, 10X, 40X, 100X |
| Nosepiece | Backward Quadruple Nosepiece |
| Stage | 132×142mm/ 75×40mm |
| Focusing |
Fine Division 0.004mm Coarse Stroke 32.7mm per rotation Fine Stroke 0.4mm per rotation Moving Range 24mm |
| Condenser |
Abbe NA 1.20 Abbe NA 1.25 |
| Illumination |
S-LED Halogen Lamp 6V/ 20W |
Ergonomic design
Double layer mechanical stage
Condenser with iris diaphragm and filter
Adjustable brightness
Coaxial coarse and fine adjustment
Biological Microscope MMBM-A104 allows detailed observation of a wide range of samples including cellular or tissue samples, microorganisms, body fluids or clinical specimens, plant or environmental samples and food samples. It is employed in educational, research, medical, and industrial settings.
