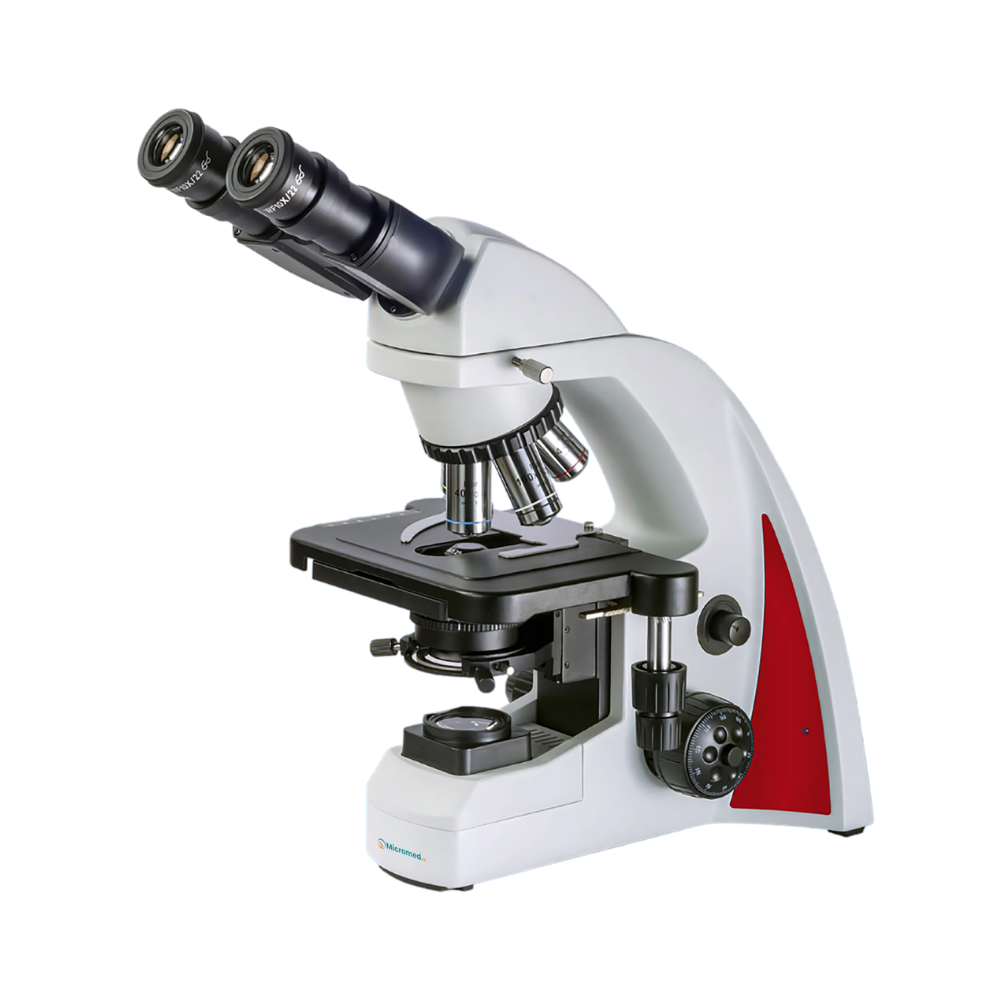

Biological Microscope MMBM-A108 offers total magnification ranging from 40X to 1000X. Designed with 30° inclined compensation-free binocular viewing head for comfortable observation. Features infinite optical system delivering clear and detailed imaging. Built with coaxial coarse and fine focusing for smooth and controlled adjustments. Our microscope includes 3W LED illumination system for consistent brightness.
Catalog| Optical System | Infinite Optical System |
| Viewing Head | Compensation-free Binocular Viewing Head Inclined at 30° |
| Interpupillary Distance | 48 to 75mm |
| Eyepiece | WF10X/22 mm |
| Objective | 4X, 10X, 20X, 40X, 100X |
| Nosepiece | Quintuple Nosepiece |
| Stage Dimension | 233×147mm |
| Stage Moving Range | 78×54 mm |
| Condenser | NA1.25 |
| Focusing System |
Coaxial Coarse and Fine Adjustment Moving Range 25mm |
| Illumination | 3W LED |
Diopter adjustable eyepiece
Infinity plan achromatic objectives
Integrated stage with two slide holders
Sliding in centerable condenser
Adjustable brightness
Biological Microscope MMBM-A108 is widely employed in medical diagnostics, scientific research, education, forensic science, agriculture, and pharmaceutical studies to examine cells, tissues, microorganisms, and biological structures.
