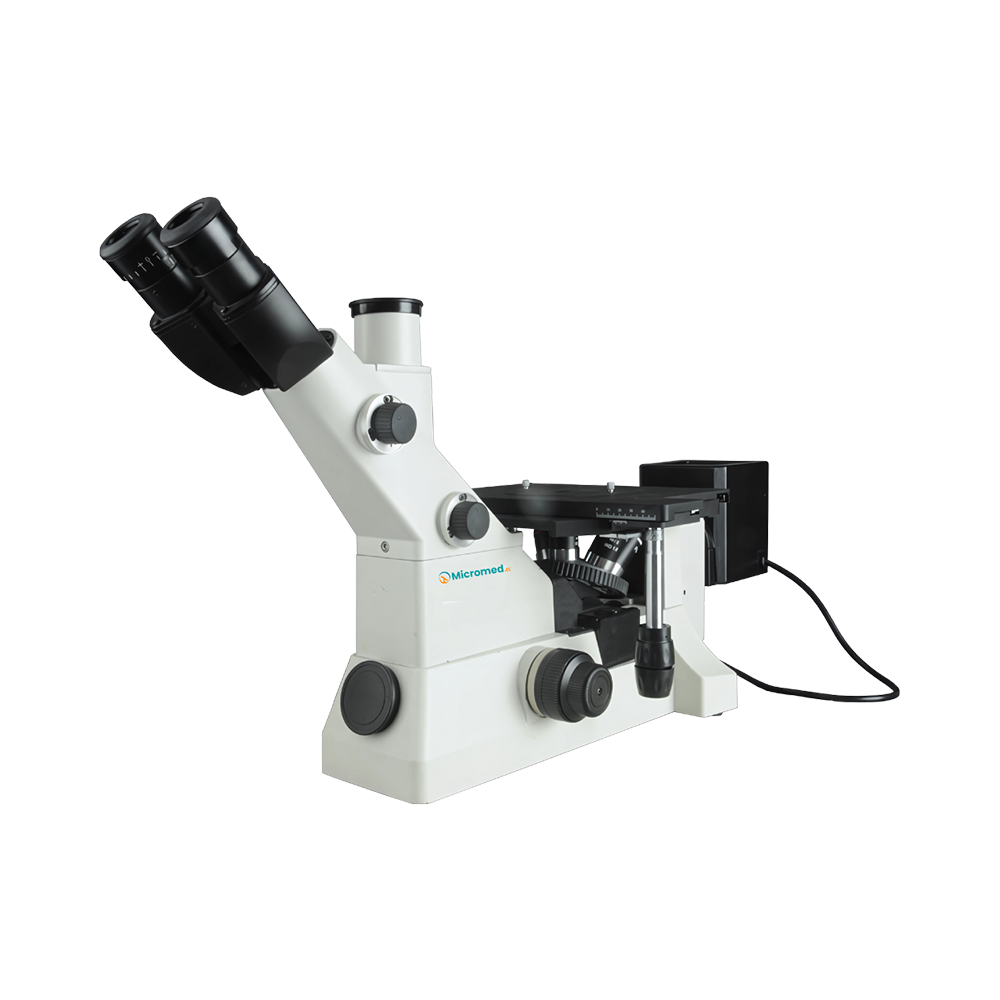

Metallurgical Microscope MMMM-A105 is built with infinite optical system and WF10X/20 eyepiece. Incorporates LWD plan achromatic objectives for superior clarity in detailed inspections. It offers versatile hinged binocular viewing head with adjustable interpupillary range. Equipped with backward quintuple nosepiece, it ensures smooth seamless operations. Our microscope with halogen light illumination excels in material and metallurgical research.
Catalog| Optical System | Infinite optical system |
| Viewing Head |
Hinged type binocular viewing head, inclined at 45° Splitting Ratio: for observation 80% and for camera 20%, or for observation 100%, and camera 100% |
| Interpupillary Distance | 48mm to 75mm |
| Extra Wide Field Eyepiece |
WF10X/20 WF15X/16 WF20X/12 |
| Infinite LWD Plan Achromatic Objective |
4X/0.10/∞/0 (BF/DF) LWD 20.7mm 10X/0.25/∞/0 (BF/DF) LWD 10mm 20X/0.4/∞/0 (BF/DF) LWD 5mm 50X/0.75/∞/0 (BF/DF) LWD 1.3mm 100X/0.9/∞/0 (BF/DF) LWD 0.7mm |
| Nosepiece | Backward quintuple nosepiece |
| Fine Division | 2μm |
| Moving Range |
Up 1mm Down 7mm |
| Stage Dimension | 226×178mm |
| Moving Range | 40mm×40mm |
| Illumination | 12V/50W Halogen light |
| Function | Bright Field, Polarization |
Coaxial coarse and fine focus system
Smooth stage movement
Double-layer mechanical stage
Center and brightness-adjustable Illumination
Eyepiece with Scale of Crosshair
Metallurgical Microscope MMMM-A105 is designed for advanced metallurgical analysis, industrial research, and material testing in labs. It is ideal for examining metal structures, ceramics, composites, plastics, polymers, food, porous materials, cosmetics, particles, glass, films, textiles, and fibers.
