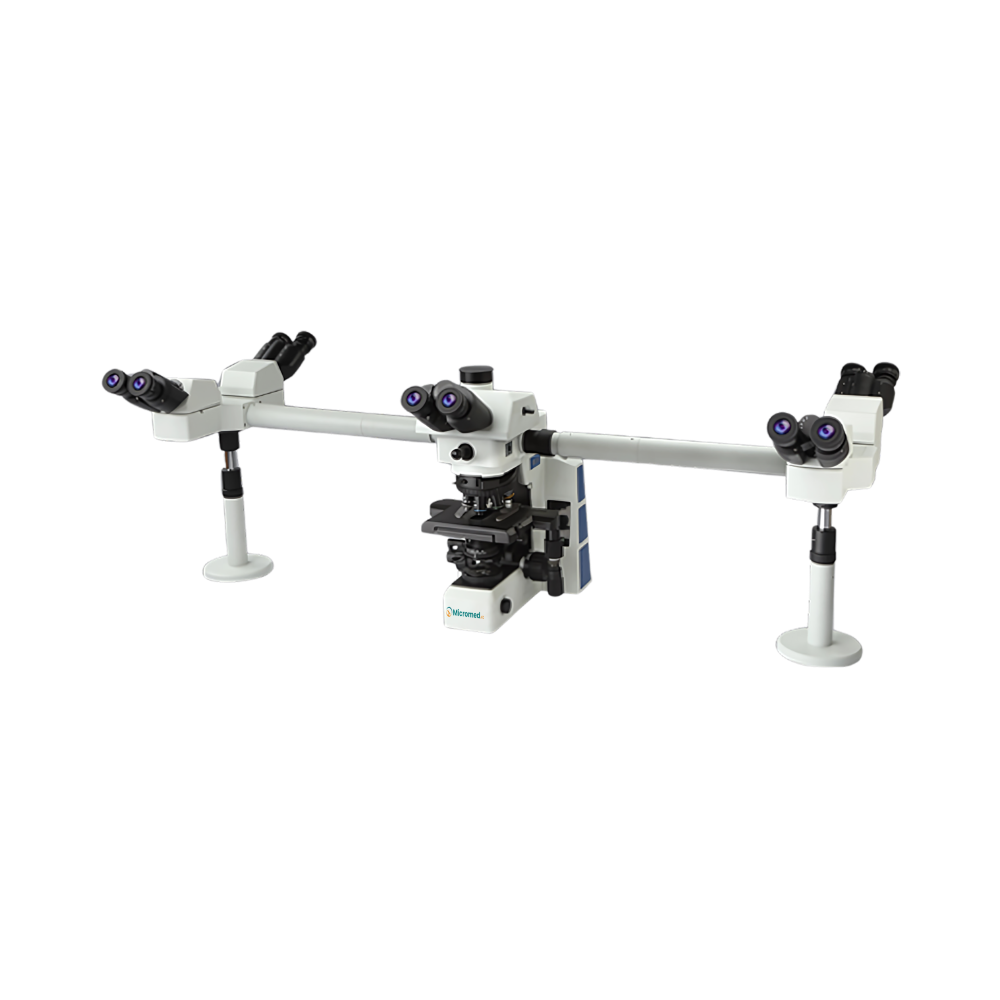

Multi viewing Microscope MMVM-A100 offers high eyepoint, wide field plan PL10X/22mm eyepieces. Designed with multi-head system, it supports simultaneous observation. Features low-position coaxial coarse and fine focusing for smooth adjustments. Equipped with swing-out achromatic condenser for variable aperture control. Our microscope integrates high-power LED lamp house for uniform transmitted illumination.
Catalog| Optical System | Infinity color corrected optical system |
| Viewing Head | 5 |
| Trinocular Head |
30° inclination, 360° rotatable Splitting ratio; Binocular: Trinocular = 100:0/50:50 |
| Binocular Head | 30° inclination, inverted image, fixed eyepiece tube |
| Interpupillary Distance | 54 to 75mm |
| Diopter Adjustment | ±5 diopter |
| Eyepiece | PL10X/22mm |
| Objective |
4X/NA=0.1, WD=15mm 10X/NA=0.25, WD=10.8mm 20X/NA=0.40, WD=1.5mm 40X/NA=0.65, WD=0.8mm 100X/NA=1.25, WD=0.21mm |
| Nosepiece | Inward quintuple nosepiece |
| Coarse Range | 30mm |
| Fine Precision | 2μm |
| Condenser | N.A.1.2/0.22 |
| Stage Dimension | 187×166mm |
| Stage Movement Range | 80×55mm, precision: 0.1mm |
| Transmitted Illumination | 5W LED |
| Multi Viewing Module |
Middle cursor module group with LED indicator cursor (red/green/blue color switching and brightness adjustable cursor) Lateral module with connecting rod group Vertical pole base group |
| Fluorescent-free Oil | 30ml |
| Internal Hexagonal Spanner | M5 |
360° rotatable gemel trinocular head
Infinitive plan achromatic objectives
Double-layer mechanical stage
Upper limit and tension adjustment
Disc switching mechanism
Alterable field diaphragm
Multi viewing Microscope MMVM-A100 is employed in clinical diagnosis, teaching, pathological tests, medical facilities, laboratories, research, and other micro-fields for simultaneous side-by-side observation by multiple users.
