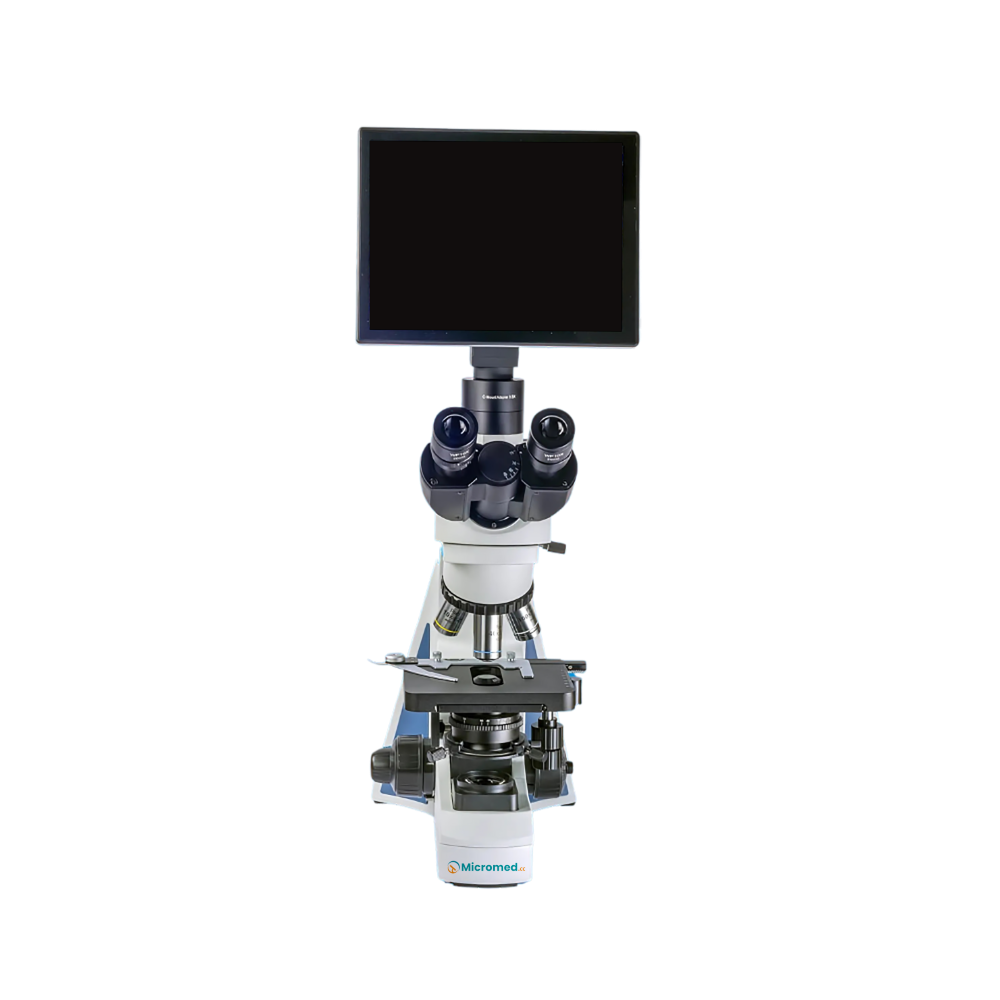

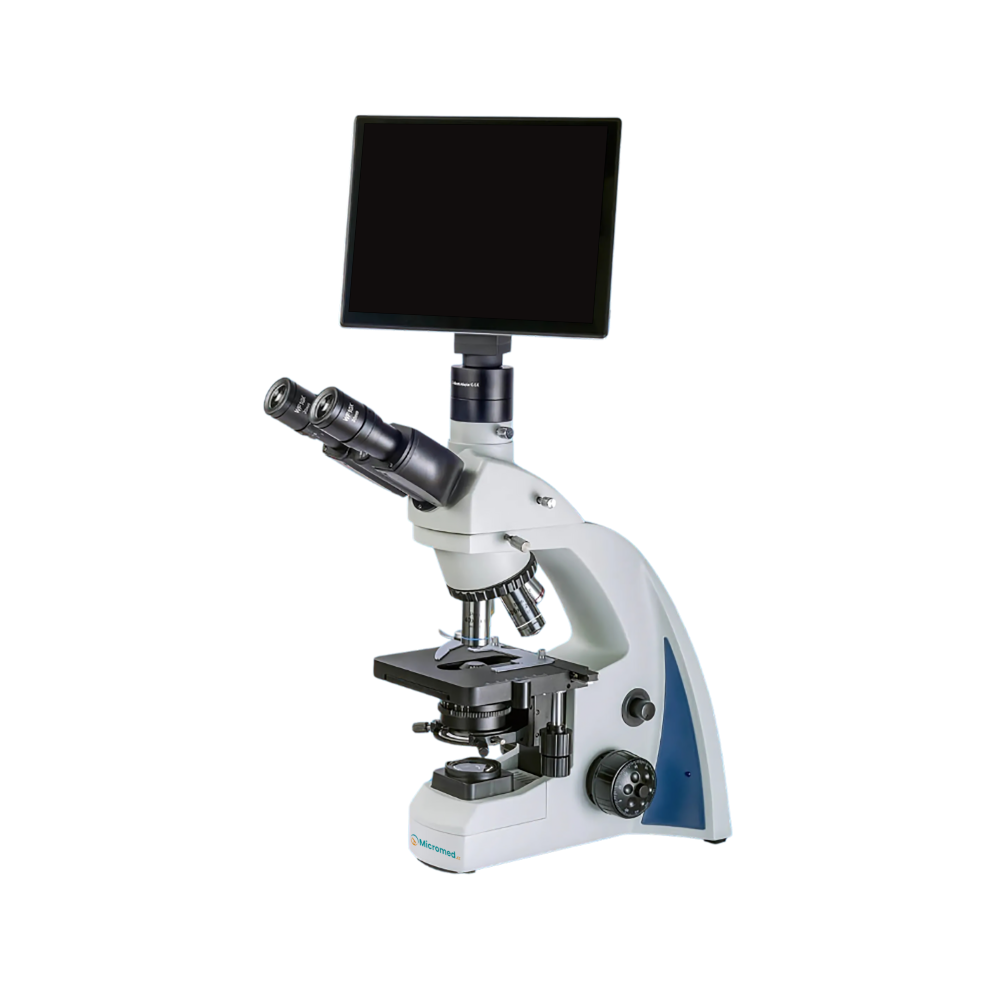

Digital Microscope MMDM-A100 delivers a total magnification of 1000x for in-depth visual analysis. Its compensation-free trinocular head maintains optical alignment while preventing image distortion. Built with high-resolution TFT touchscreen, it offers real-time viewing and intuitive control. Provide multiple output options, including USB and HDMI, for smooth data transfer. Our Microscope features S-EYE software and 5MP camera for advanced imaging performance.
Catalog| Optical System | Infinite Optical System |
| Viewing Head | Compensation Free Trinocular Head, 30° inclined |
| Interpupillary Distance | 48 to 75mm |
| Eyepiece | WF10X/20 |
| Objective | 4x, 10x, 40x, 100x |
| Nosepiece | Quadruple nosepiece |
| Focussing System |
Coaxial coarse and fine adjustment Moving range 25mm |
| Condenser | NA1.25 |
| Stage Dimension | 140×132 mm |
| Stage Movement Range | 76×50 mm |
| Screen | LCD, 9.7-inch TFT touching screen |
| Operation System | Android 5.1 |
| Output | USB 2.0, HDMI. TF card, built-in WIFI |
| Valid Pixel | 5.0M Pixel |
| Software | S-EYE |
Wide field eyepiece
Infinity plan achromatic objectives
Double-layer mechanical stage
Sliding-in centerable condenser
Ergonomic design
Digital Microscope MMDM-A100 is employed in education, biology, electronics, manufacturing, forensics, and research for high-resolution observation, inspection, documentation, and analysis.
