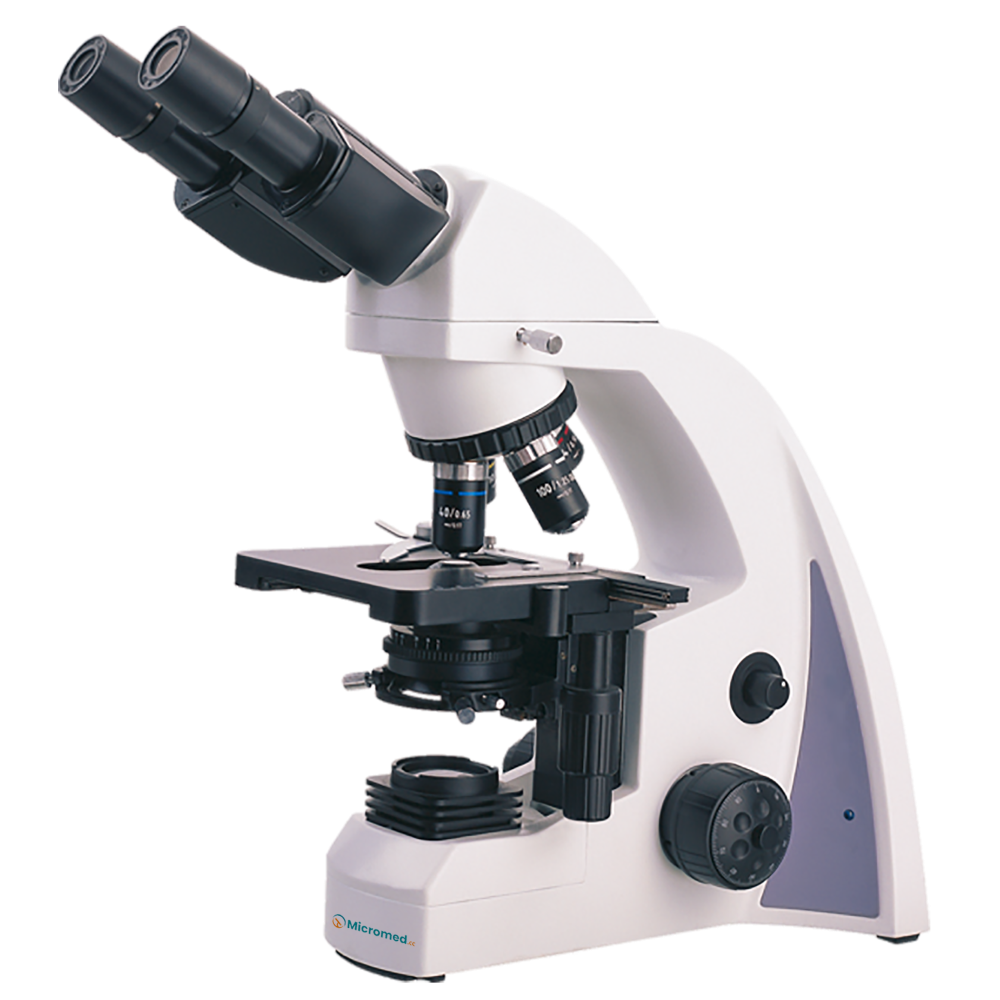

Biological Microscope MMBM-A100 offers up to 1000x magnification and hinged binocular heads. Equipped with wide-field and extra wide-field eyepieces, for high-resolution images. Incorporates quadruple nosepiece with plan and semi-plan achromatic objectives. Features a double-layer mechanical stage for smooth sample movement. Our microscope with Infinite Optical System delivers superior optical clarity.
Catalog| Optical System | Infinite Optical System |
| Viewing Head | Hinged type Binocular Viewing Head, 30° Inclined |
| Interpupillary Distance | 48 to 75mm |
| Eyepiece |
WF10X/18 EW10X/20 |
| Objective |
Infinitive plan / semi-plan achromatic objectives 4X,10X,40X,100X |
| Nosepiece | Quadruple |
| Focusing System |
Fine Division: 0.002mm Coarse Stroke: 37.7mm per rotation Fine Stroke: 0.2mm per rotation Moving Range: 20mm |
| Condenser Numerical Aperture | NA1.25 |
| Stage Dimension | 140mm×140mm |
| Stage Movement Range | 75mm×50mm |
| Illumination |
S-LED 6V/ 20W Halogen Lamp |
| Fluorescent Attachment |
YX-2 FL-LED |
| Temperature Control System | 5W LED Illumination |
| Temperature Controlling Range | Room temperature to 50℃ |
Ergonomic structure
Easy diopter adjustment
Sliding-in centerable condenser
Adjustable brightness
Biological Microscope MMBM-A100 is widely employed in educational institutions, clinical diagnostics, pharmaceutical research, and industrial laboratories for cell observation, microbial studies, and material analysis.
