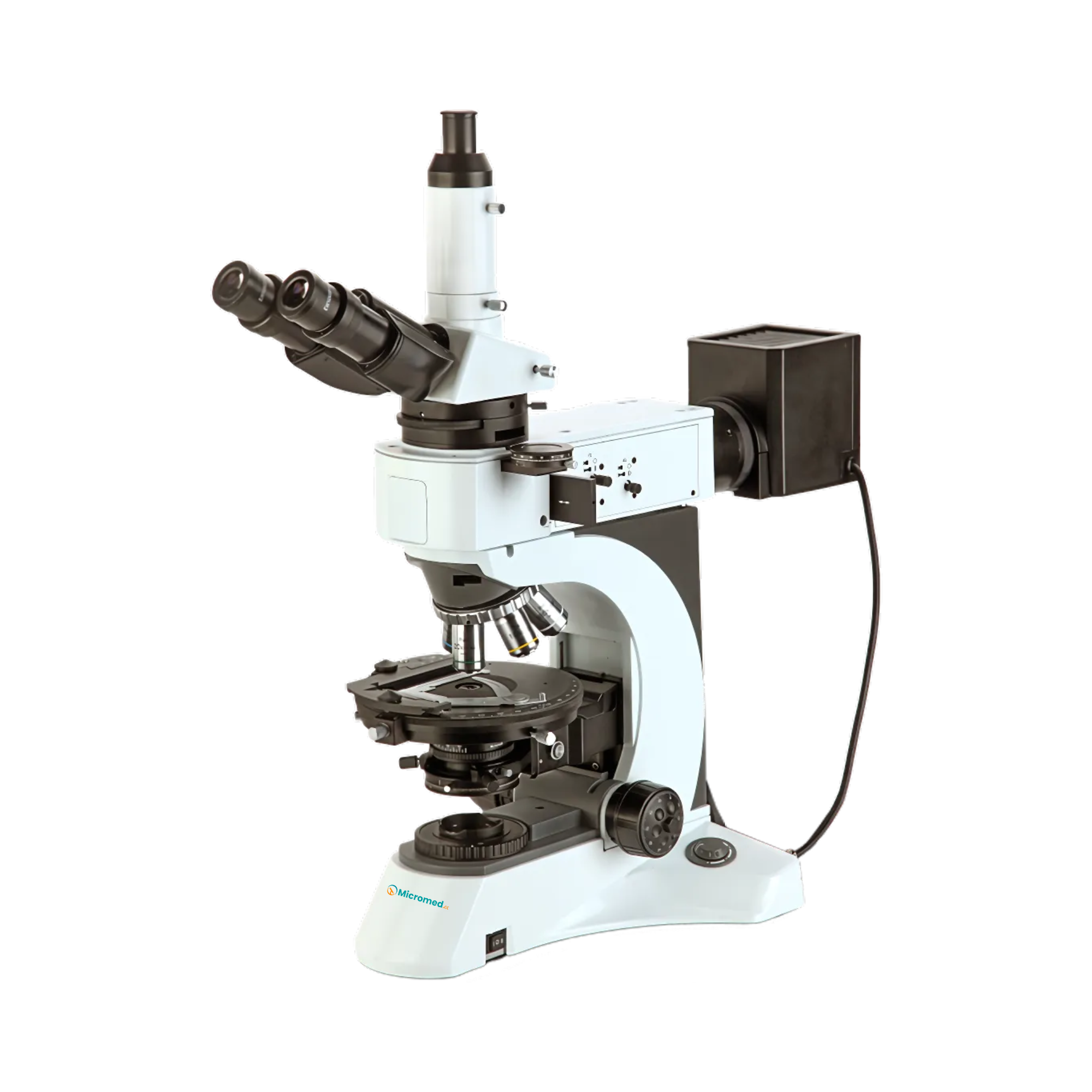

Polarizing Microscope MMPM-A100 offers a fixed polarizer and 360° rotatable analyzer. Equipped with center adjustable polarizing rotatable stage for smooth sample rotation and alignment. Features a halogen lamp with adjustable brightness for optimal sample illumination. Built with extra-wide field eyepiece, providing broader and clearer view. Our microscope ensures excellent magnification flexibility for a variety of sample types.
Catalog| Optical System | Infinite optical system |
| Viewing Head | Hinged-type trinocular head inclined at 30° |
| Interpupilary Distance | 48 to 75mm |
| Eyepiece |
EW10X/22 Plan eyepiece with scale of crosshair Plan eyepiece with cross Plan eyepiece with gridding |
| Objective |
5X/0.12/∞/- WD 15.5mm 10X/0.25/∞/- WD 10.0mm 20X/0.4/∞/0 WD 5.8mm 50X/0.75/∞/0 WD 0.32mm 100X/0.8/∞/0 WD 2mm |
| Nosepiece | Backward quintuple nosepiece |
| Analyzer |
360° dial rotation Minimum vernier scale reading：0.1° |
| Polarizer | Reflected: Fixed |
| Conoscopic Observation Attachment | Bertrand lens position adjustable |
| Optical Compensator |
First-order red plate Guarter-wave plate Quartz wedge |
| Polarizing Rotatable Stage |
Diameter Φ170mm 360° scale Minimum divison 1° Minimum reading 6' vernier scale 45°Click stop knob |
| Attachable Stage Moving Range | 30mm×40mm |
| Focusing |
Range 32mm Fine division 0.001mm Coarse stroke 37.7mm per rotation Fine stroke 0.1mm per rotation |
| Illumination | Reflected light: 24V/100W Halogen lamp |
Strain-Free Plan Achromatic Objective
Easy switching between orthoscopic and conoscopic modes.
Attachable mechanical stage
Centre adjustable nosepiece
Ergonomic design
Polarizing Microscope MMPM-A100 is employed in applications including birefringent materials study, crystallography, mineral identification, material defect analysis, and optical property evaluation. This advanced polarizing microscope is a valuable tool for laboratory industrial or research environments.
