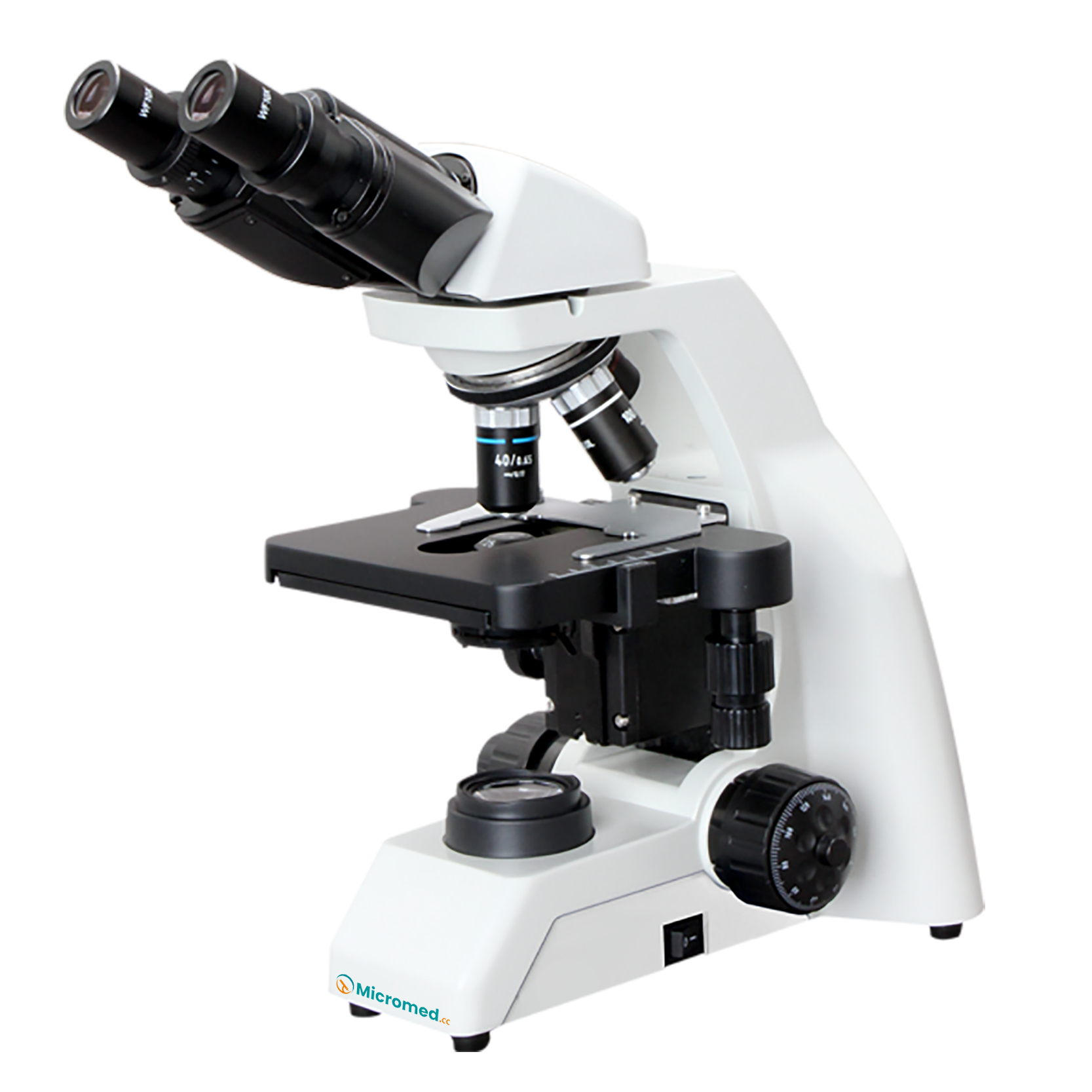

Biological Microscope MMBM-A102 offers up to 1000x magnification and a finite optical system. Equipped with LED fluorescence and HBO lamp for advanced fluorescence imaging. It delivers exceptional brightness and contrast with S-LED, halogen, and kohler illumination. Features Abbe and dark field condenser, optimizing light control for enhanced clarity. Our microscope featuring binocular head ensures comfortable viewing and a sharp image display.
Catalog| Optical System | Finite Optical System |
| Viewing Head | Hinged type Binocular Viewing Head Inclined at 30° |
| Interpupillary Distance | 47 to 78mm |
| Eyepiece | WF10x/18 |
| Objective |
4x NA=0.1 WD=18 10x NA=0.25 WD=7 40x NA=0.65 WD=0.53 100x NA=1.25 WD=0.13 |
| Stage Dimension | 140×140mm |
| Stage Moving Range | 75×50mm |
| Condenser |
NA1.25 Abbe Condenser Dark Field Condenser (Dry, Oil) |
| Focusing System |
Coaxial Coarse and Fine Adjustment Fine Division 0.002mm Moving Range 25mm |
| Illumination |
Halogen Lamp 6V/20W S-LED Illumination S-LED Illumination with Recharger Kohler Illumination ECO Function Plane-concave Mirror |
| Fluorescent Attachment |
LED lamp 100W HBO lamp |
Compact ergonomic design
Backward quadruple nosepiece
Double-layer mechanical stage
Achromatic objectives
Biological Microscope MMBM-A102 is widely employed for examining tissue samples, cells, biopsy specimens, animal tissue, and microbiological samples.
