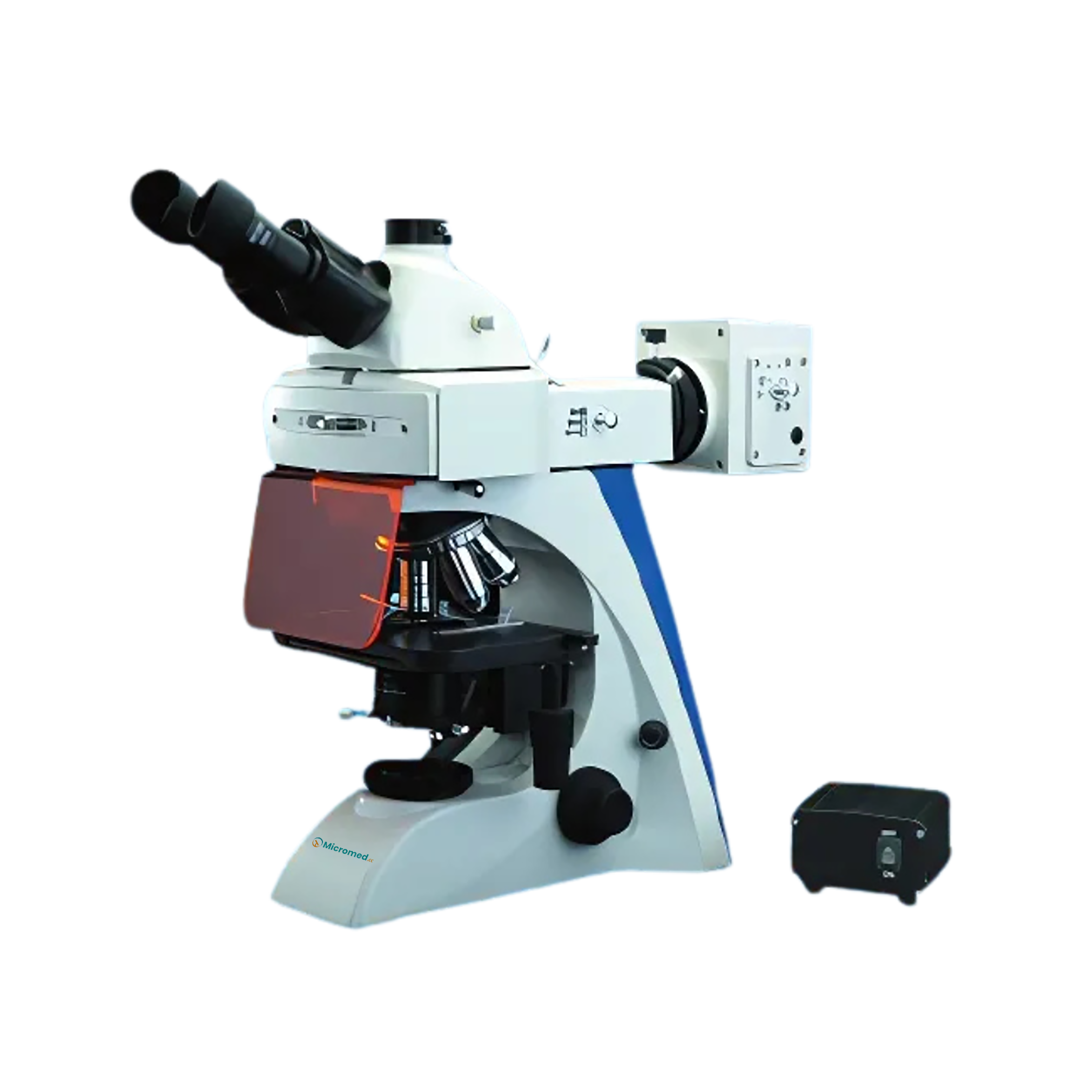

Fluorescence Microscope MMFM-A100 features Siedentopf trinocular head with 360° rotation for comfortable viewing. Equipped with coaxial coarse and fine adjustment for efficient focusing. Built with quintuple click-stop revolving nosepiece, ensuring seamless magnification transitions. Incorporates Koehler illumination system with variable brightness for optimal contrast. Our microscope includes epi-fluorescence LED system with excitation filters for enhanced fluorescence imaging.
Catalog| Viewing Head | Siedentopf Trinocular Head, 30° Inclined, 360° Rotation |
| Interpupillary Distance | 50 to 75 mm |
| Eyepiece | WF 10X/20 mm |
| Objectives | 4X, 10X, 20X, 40X(s), 100x(s, oil) |
| Condenser Numerical Aperture | 1.25 NA |
| Stage Size | 180×145 mm |
| Movement Range | 76 (X) × 52(Y) |
| Focussing | Coaxial coarse and fine focusing adjustment |
| Nosepiece | Quintuple click-stop revolving mechanism with multiple ball bearing |
| Illumination | Koehler illumination system 3W LED or Halogen 6V/20W, Adjustable brightness, Field diaphragm |
| Epi-Fluorescence Led | Excitation Filter (B, G), LED Power Source, 3W LED Lamp House (B- LED / G-LED Lamp), Centering Objective |
| Power Supply | 85V to 265V |
Anit-fungal systems
Infinite plan objectives
Double-layer mechanical stage
Removable slide holder
Right-hand stage handle
Abbe condenser with iris diaphragm
Universal power supply
Fluorescence Microscope MMFM-A100 is employed in biological, medical, and material sciences for live cell imaging, studying pathogens, genetic material, neuronal activity, identifying cancer cells, and immunofluorescence study.
