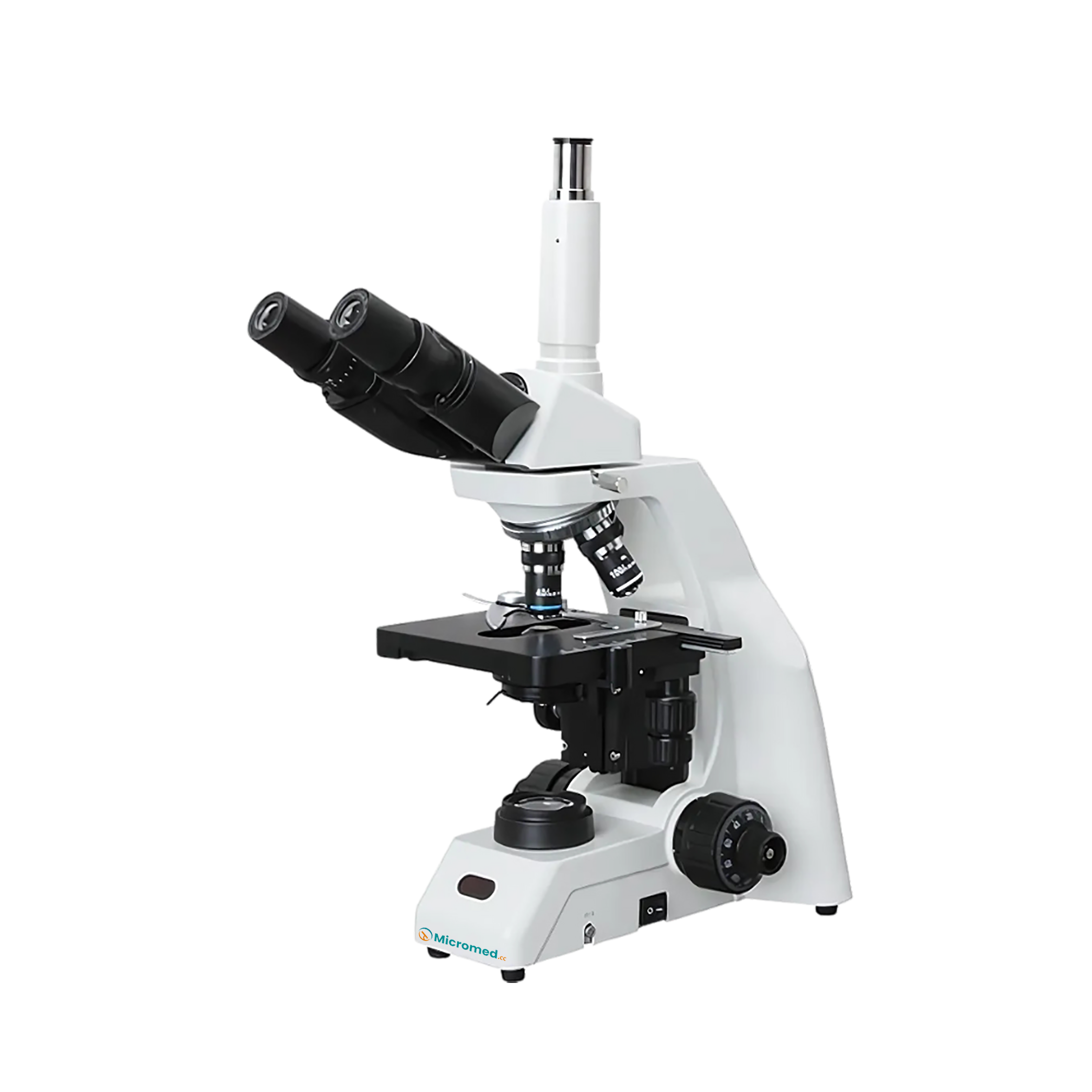

Biological Microscope MMBM-A103 offers magnification up to 1000x. Delivers sharp image display with its finite optical system. Features trinocular viewing head for flexibility in visual observation and digital imaging. Equipped with achromatic objectives to provide sharp, color-corrected images. Our microscope comes with darkfield condenser, optional phase contrast, and polarization set.
Catalog| Optical System | Finite optical system |
| Viewing Head |
Hinged type Trinocular inclined at 30°, Interpupillary 47 to 78mm Digital viewing head inclined at 30°, interpupillary 47-78mm, 5M pixels, support wifi |
| Eyepiece | WF10x/18 |
| Objective |
4x NA=0.1 WD=18 10x NA=0.25 WD=7 40x NA=0.65 WD=0.53 100x NA=1.25 WD=0.13 |
| Stage dimension | 140×140mm |
| Moving Range | 75×50mm |
| Condenser |
Na1.25 abbe condenser Dark field condenser (dry, oil) |
| Focusing System |
Coaxial coarse and fine adjustment Fine division 0.002mm Moving range 25mm |
| Illumination |
Halogen lamp 6v/20w S-led illumination S-led illumination with recharger Kohler illumination Eco function Plane-concave mirror |
| Fluorescent Attachment |
LED lamp 100w HBO lamp |
Ergonomic design
Backward quadruple nosepiece
Double-layer mechanical stage
Bright, energy-efficient illumination
Biological Microscope MMBM-A103 is employed in molecular biology, pathology, histology, and microbiology to examine tissue samples, bacteria, and cellular structures. It is an ideal choice for educational purposes, industries, research institutes, and diagnostic labs.
