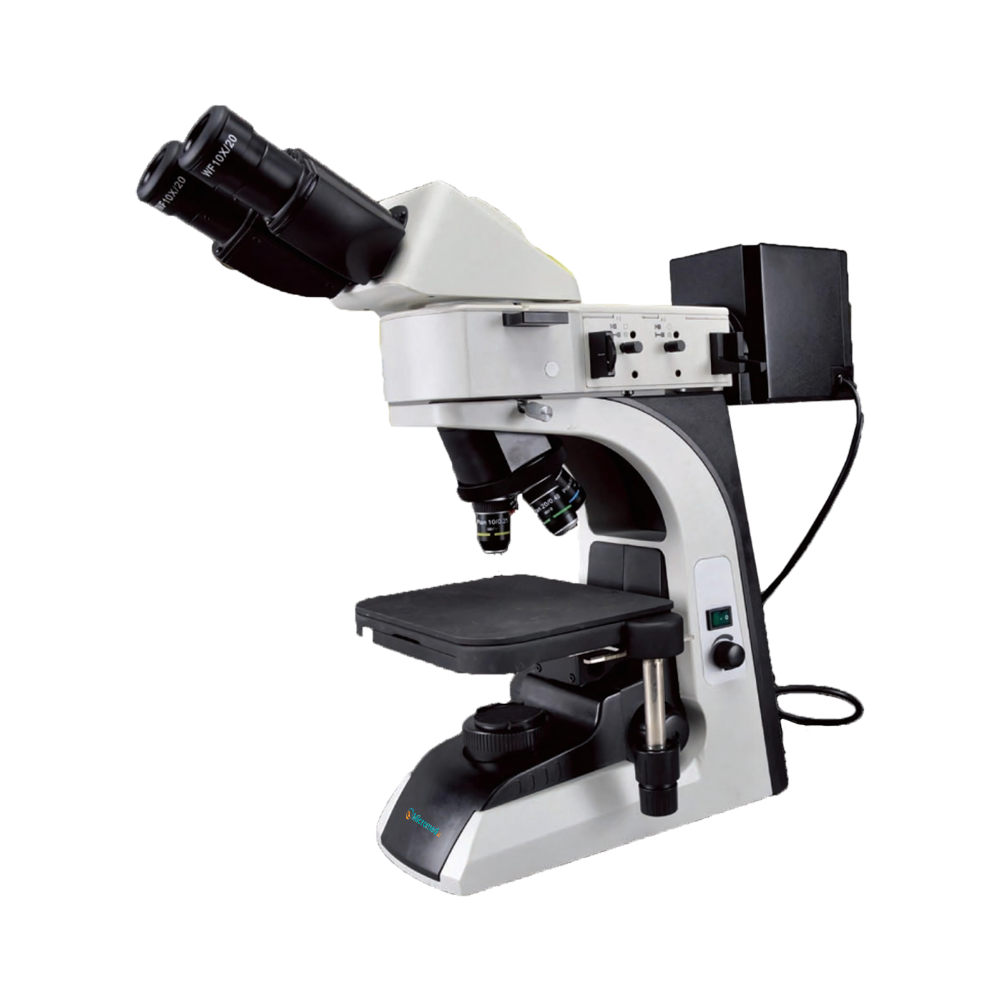

Metallurgical Microscope MMMM-A106 offers extra-wide field eyepieces WF10X/20 and objectives up to 50X. Featuring an infinite optical system, it provides superior imaging clarity and resolution. Equipped with Köhler incident illumination with center and brightness adjustments for optimal contrast. Built with backward quintuple nosepiece, allowing smooth and efficient magnification changes. Our microscope incorporates additional features including a polarizer and analyzer for enhanced imaging.
Catalog| Optical System | Infinite optical system |
| Viewing Head | Hinged type binocular viewing head, inclined at 30° |
| Interpupillary Distance | 48 to 75mm |
| Eyepiece | WF10X/20 |
| Objective |
4X/0.10/∞/- LWD 20.7mm 10X/0.25/∞/- LWD 7mm 20X/0.4/∞/0 LWD 5mm 50X/0.75/∞/0 LWD 1.3mm |
| Kohler Incident Light |
12V/50W Halogen light Polarizer and analyzer Green, Gray filter and Ground glass |
| Focusing |
Coaxial coarse and fine adjustment Fine division 2μm Moving range 30 mm |
| Nosepiece | Backward quadruple nosepiece |
| Stage | 230×150mm |
| Stage Moving Range | 78mm×54mm |
| Micrometer Scale | 0.01mm |
Triplex layer mechanical stage
Powerful transmitted and reflected system
Eyepiece with scale of cross-hair
Infinite plan achromatic objective
Ergonomic designBottom of Form
Metallurgical Microscope MMMM-A106 is widely employed in material science, metallurgy, and industrial quality control. It is ideal for analyzing metal structures, alloys, coatings, composites, ceramics, and polymers at high magnifications.
