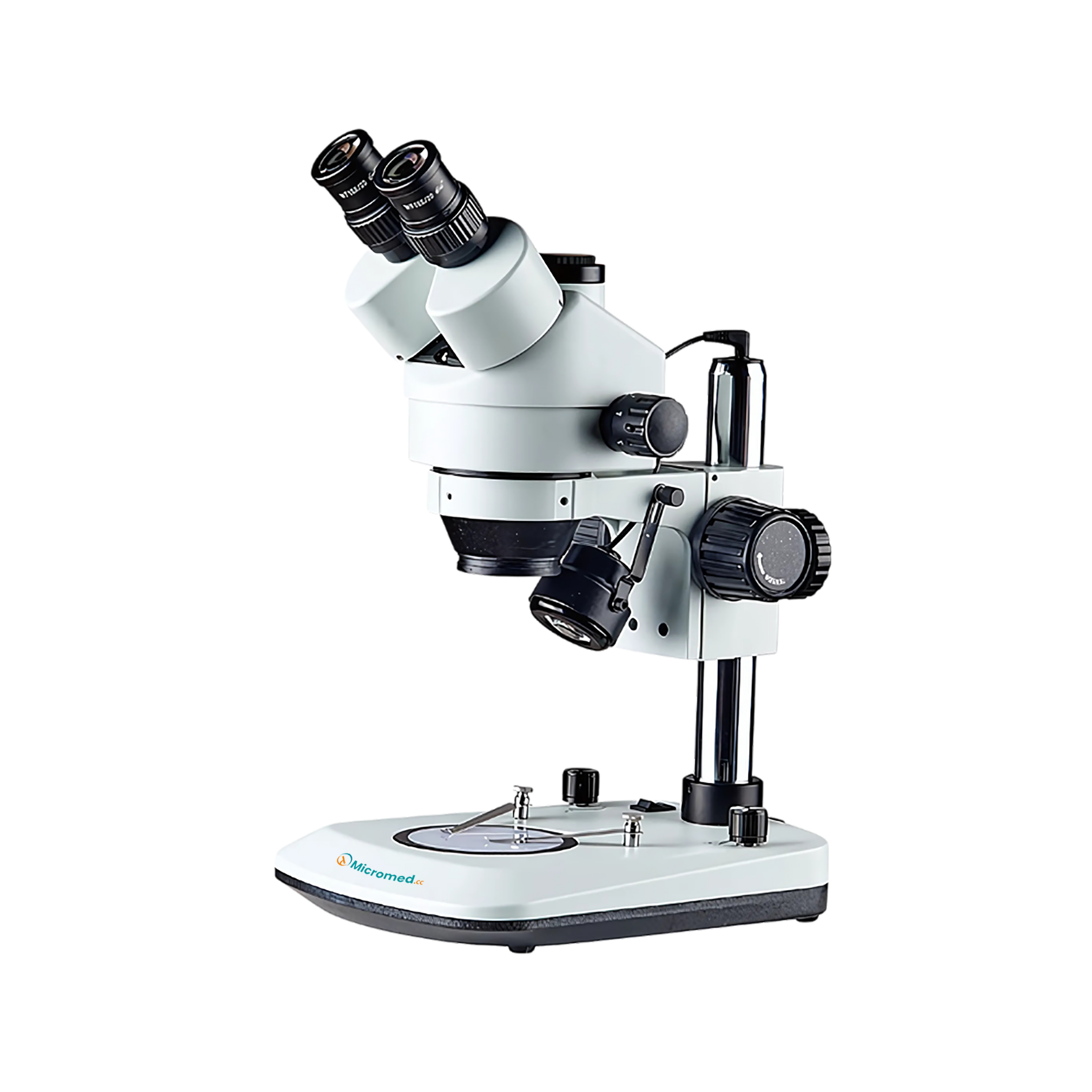

Stereo Microscope MMSM-A104 offers magnification range of 3.5X to 270X. Equipped with trinocular head ideal for connecting cameras or other digital devices. Incorporates a zoom system that maintains high image resolution and parfocality. Designed with extended working distance, it allows easy handling of various sample sizes. Our microscope features wide-field viewing and high-magnification zooming for detailed analysis.
Catalog| Viewing Head |
Trinocular Head, 45° inclination, 360° rotatable Trinocular Body: 0%/100%, 50%/50%, 20%/80%, with a vertical phototube |
| Diopter Adjustment | +/-5 diopters |
| Interpupillary Distance | 54 to 76mm |
| Eyepiece | WF10X/20mm |
| Objective |
Zoom Range: 0.7X to 4.5X Zoom Ratio: 6.4:1 |
| Working Distance |
Standard:100mm Optional lens: 30 to 287mm |
| Total Magnification and Field of View |
Standard: 7X to 45X, FOV: 28.6mm to 4.4mm Optional lens: 3.5 to 270X, FOV: 57.1mm to 0.9mm |
| Focusing Arm |
A1 focusing bracket Lifting range 50mm |
| Trinocular Interface | Fit with three-eye pole and CTV, it can be connected with ordinary camera, digital camera, industrial camera and CCD |
| Base | CB1 Base |
High-eyepoint eyepiece
Ergonomic viewing
Robust focusing arm
Easy diopter adjustments
Tightness adjustable handwheel
Stereo Microscope MMSM-A104 is ideal for three-dimensional viewing and detailed inspection of specimens in fields like electronics, biology, medical research, and forensic analysis.
