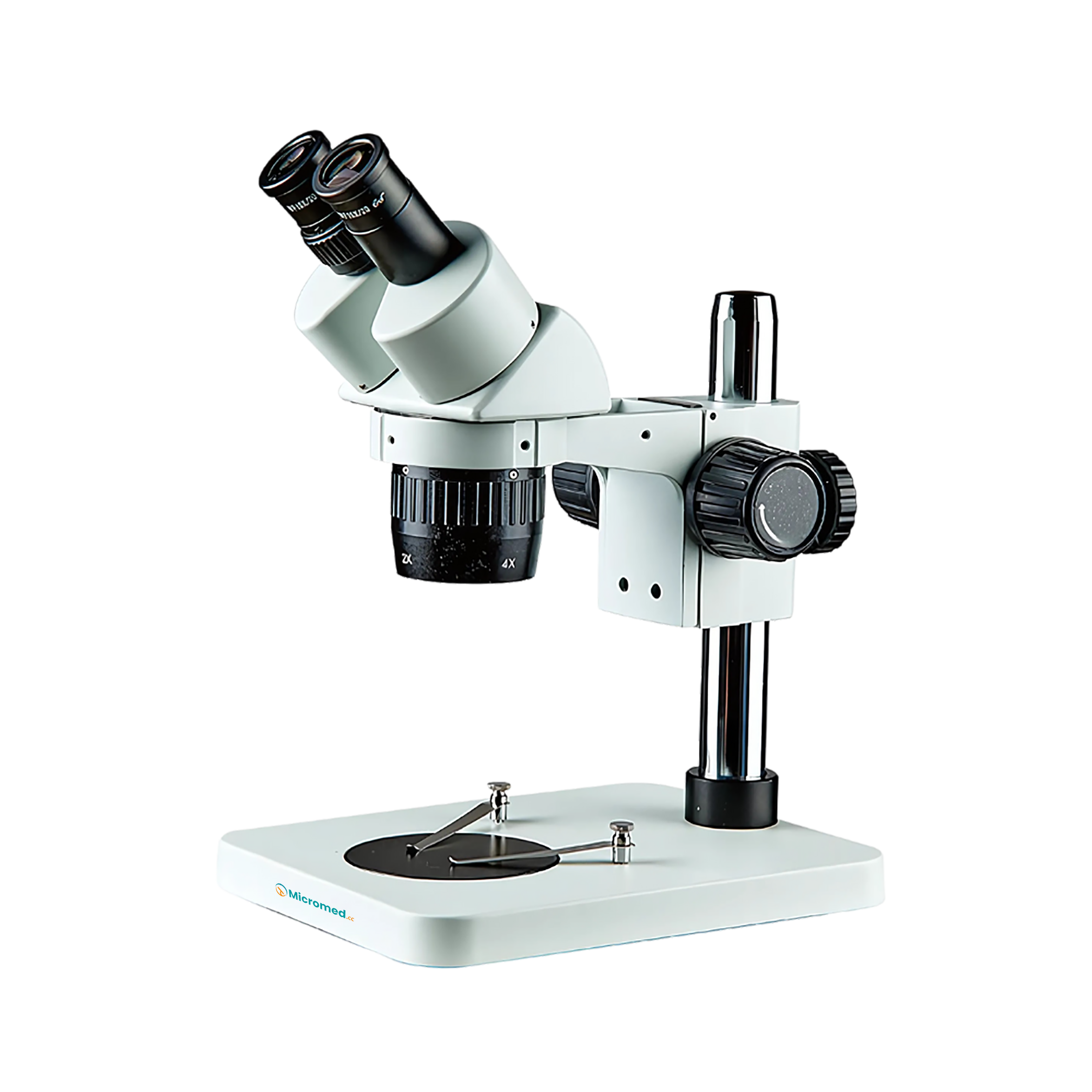

Stereo Microscope MMSM-A100 offers magnification range of 40X, extendable up to 80X. Equipped with binocular head, wide-field eyepieces, and high-quality objectives. With working distance of 100mm, it provides ample space for handling specimens. Focusing system features A1 focusing bracket with adjustable handwheel tightness. Our microscope with fluorescent and LED ring light provides bright, uniform lighting.
Catalog| Viewing Head | Binocular head, 45° inclined, 360° rotatable |
| Interpupillary Distance | 54 to 76mm |
| Diopter Adjustment | ±5 diopters |
| Eyepiece | WF 10X/20mm |
| Objective | 2X/4X, 1X/3X, 1X/2X |
| Working Distance | 100mm |
| Magnification |
Standard: 20X to 40X With optional eyepieces and objectives: 10X to 80X |
| Magnification and Field of View |
10X = 20.0mm FOV 12X = 15.0mm FOV 20X = 10.0mm FOV 30X = 7.5mm FOV 40X =5.0mm FOV 45X = 5.0mm FOV 60X = 3.3mm FOV 80X = 2.5mm FOV |
| Focusing Mount | A1 focusing bracket, handwheel's tightness is adjustable, lifting range 50mm |
| Stand | CB1 Base |
| Illumination |
Fluorescent lamp LED ring light |
360° rotatable head, lockable at any position
High-eyepoint eyepiece
Clear, and distortion-free images
Ergonomic design
Sturdy CB1 base
Stereo Microscope MMSM-A100 is designed for wide range of applications including electronics inspection, material analysis, medical research, and industrial quality control.
