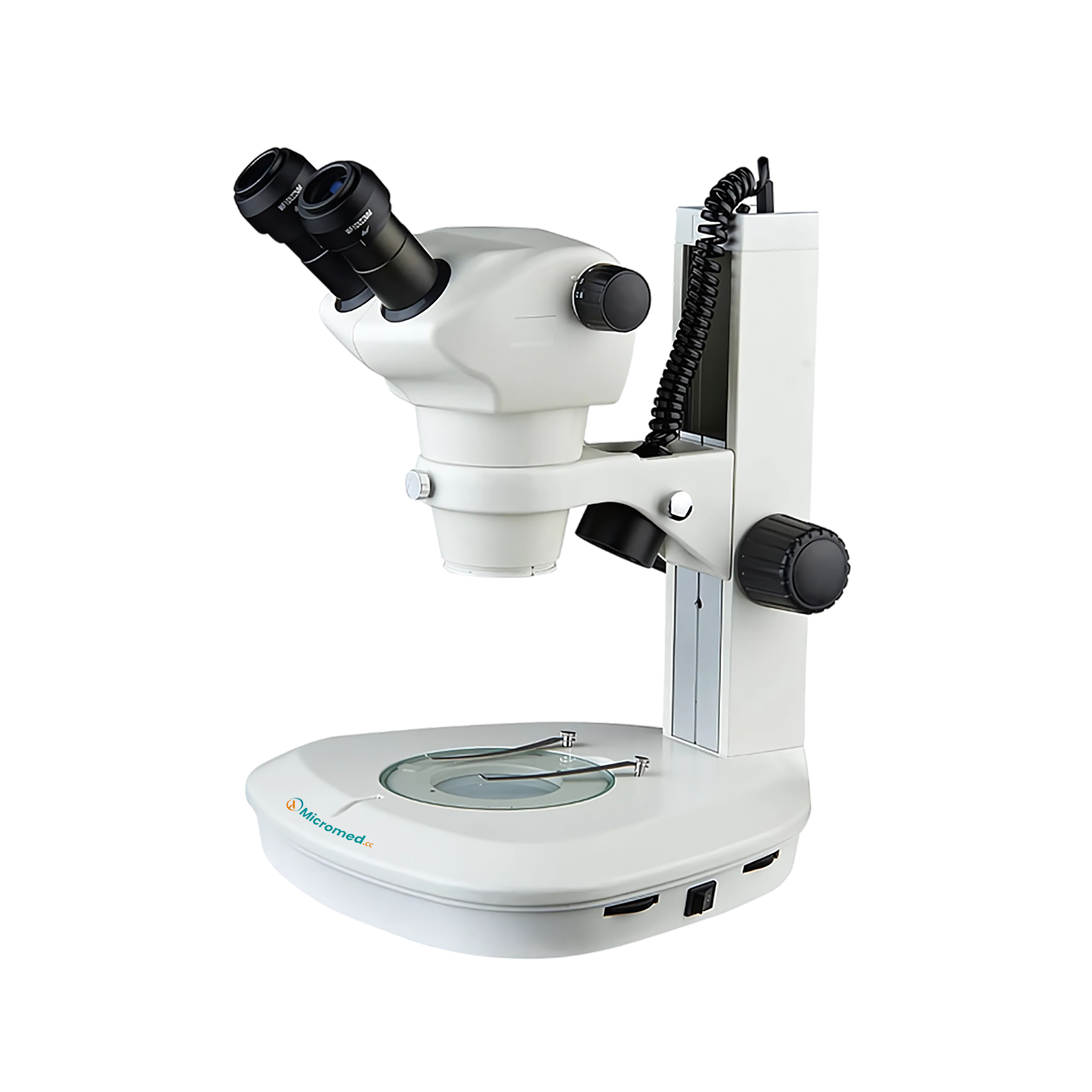

Stereo Microscope MMSM-A105 offers a magnification range of 4X to 300X. Provides ample space for sample manipulation with standard working distance of 115mm. Its high-quality optical system ensures clear, distortion-free imaging. Built with sturdy CD base to provide stability. Our microscope provides multiple illumination options ensuring optimal lighting for different specimens.
Catalog| Viewing Head | Binocular Head, 45° inclination, 360° rotatable |
| Diopter Adjustment | +/-5 diopters |
| Interpupillary Distance | 52 to 75mm |
| Eyepiece | 10X/22mm |
| Objective |
Zoom Range: 0.8X to 5.0X Zoom Ratio: 6.3:1 |
| Total Magnification and Field of View |
Standard: 8X to 50X, FOV 27.5mm to 4.4mm Optional lens: 4 to 300X, FOV 55mm to 0.8mm |
| Working Distance |
Standard: 115mm Optional lens: 43.5 to 211mm |
| Base | CD Base |
Flat wide-field eyepiece with adjustable visibility
High-eyepoint eyepieces.
Ergonomic binocular viewing head
Flat field parfocal zoom objectives
Sharp clear images with great flatness and contrast
Stereo Microscope MMSM-A105 is highly adaptable for research, medical diagnostics, electronics assembly, and educational applications.
