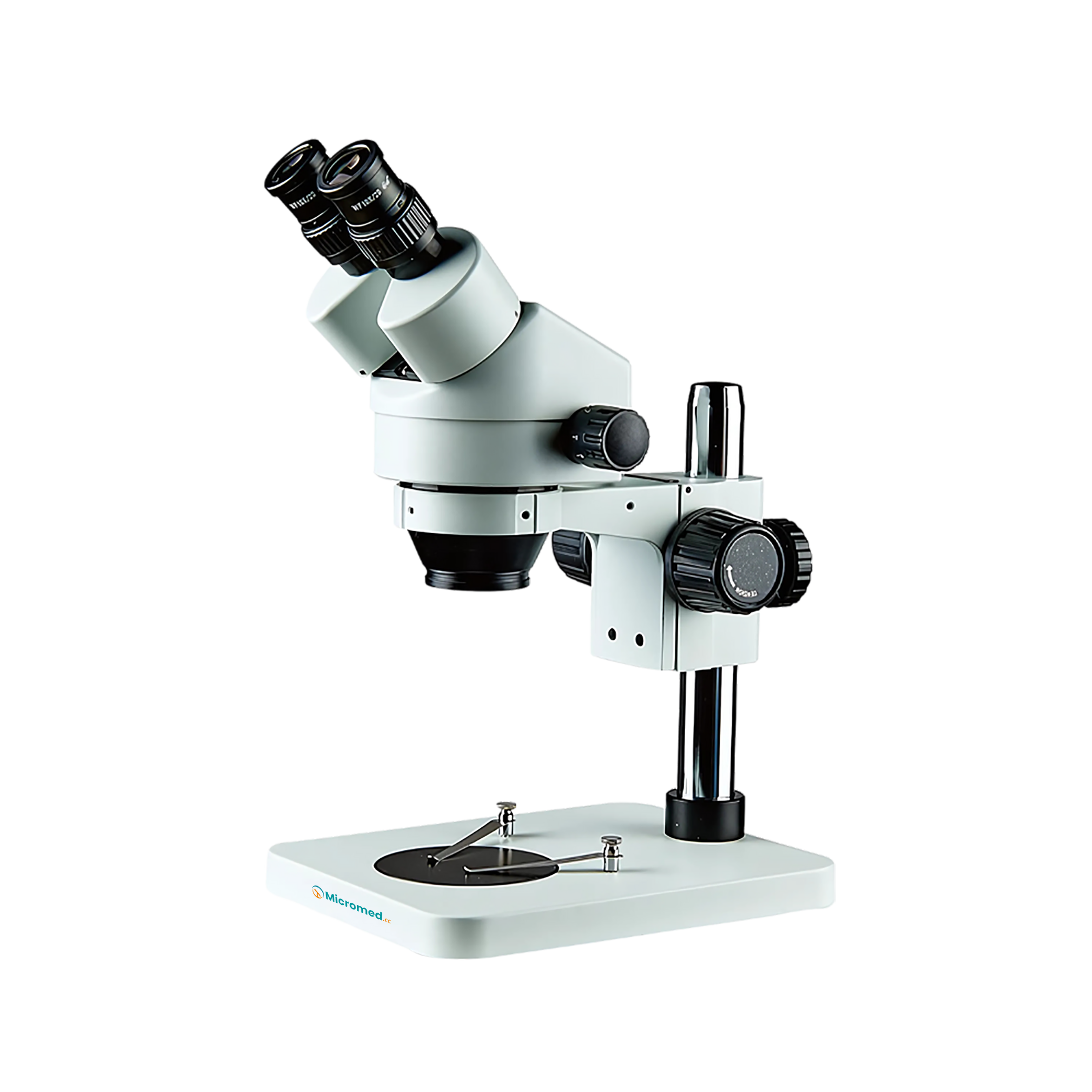

Stereo Microscope MMSM-A103 offers zoom range of 0.7X to 4.5X, for high-clarity images. Features 360° rotatable binocular head for ergonomic viewing and maximum flexibility. Built with a robust focusing arm that provides smooth, adjustable focusing. Designed with sturdy base, it ensures stable and reliable operation. Our microscope with magnification up to 270X provides exceptional performance and flexibility.
Catalog| Viewing Head | Binocular Head, 45° inclination, 360° rotatable |
| Diopter Adjustment | +/-5 diopters |
| Interpupillary Distance | 54 to 76mm |
| Eyepiece | 10X/20 mm |
| Objective |
Zoom Range: 0.7X to 4.5X Zoom Ratio: 6.4:1 |
| Working Distance |
Standard:100mm Optional lens: 30 to 287mm |
| Total Magnification and Field of View |
Standard: 7X to 45X, FOV: 28.6mm to 4.4mm Optional lens: 3.5 to 270X, FOV: 57.1mm to 0.9mm |
| Focusing Arm |
A1 focusing bracket Lifting range 50mm |
| Base | CB1 Base |
Super wide-field high-eyepoint eyepiece
Multiple illumination options
Longer working distance
Broad field of view
Tightness adjustable handwheel
Stereo Microscope MMSM-A103 is suitable for scientific research, industrial inspection, electronics manufacturing, medical analysis, and education.
