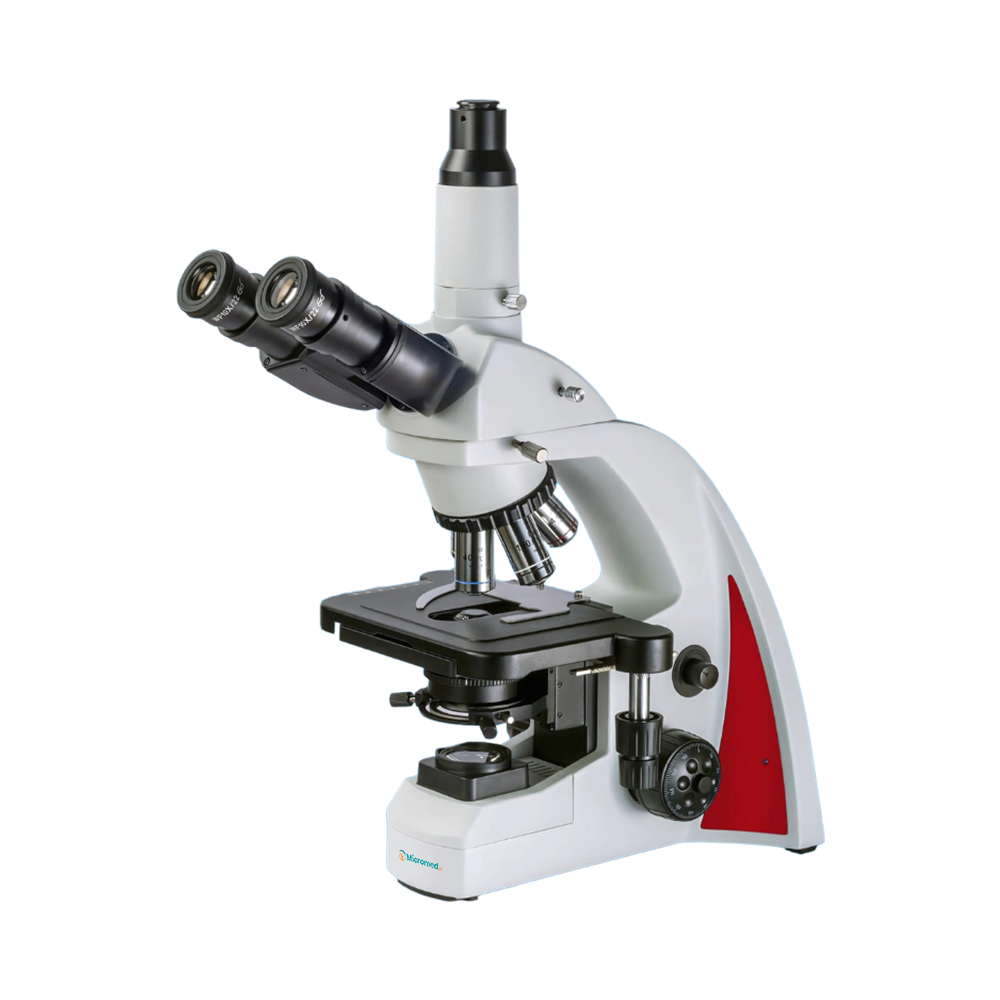

Biological Microscope MMBM-A109 offers magnification up to 1000X. Features infinite optical system for clear and detailed imaging. Designed with compensation-free trinocular head inclined at 30° for comfortable observation. Built with spacious mechanical stage and smooth-moving range for seamless sample positioning. Our microscope incorporates 3W LED illumination system for enhanced visibility.
Catalog| Optical System | Infinite Optical System |
| Viewing Head | Compensation-free Trinocular Viewing Head Inclined at 30° |
| Interpupillary Distance | 48 to 75mm |
| Eyepiece | WF10X/22 mm |
| Objective | 4X, 10X, 20X, 40X, 100X |
| Nosepiece | Quintuple Nosepiece |
| Stage Dimension | 233×147mm |
| Stage Moving Range | 78×54 mm |
| Condenser | NA1.25 |
| Focusing System |
Coaxial Coarse and Fine Adjustment Moving Range 25mm |
| Illumination | 3W LED |
Diopter adjustable eyepiece
Infinity plan achromatic objectives
Integrated stage with two slide holders
Sliding in centerable condenser
Adjustable brightness
Biological Microscope MMBM-A109 is widely employed in life sciences, medical diagnostics, and research laboratories to study cells, tissues, microorganisms, and other samples.
