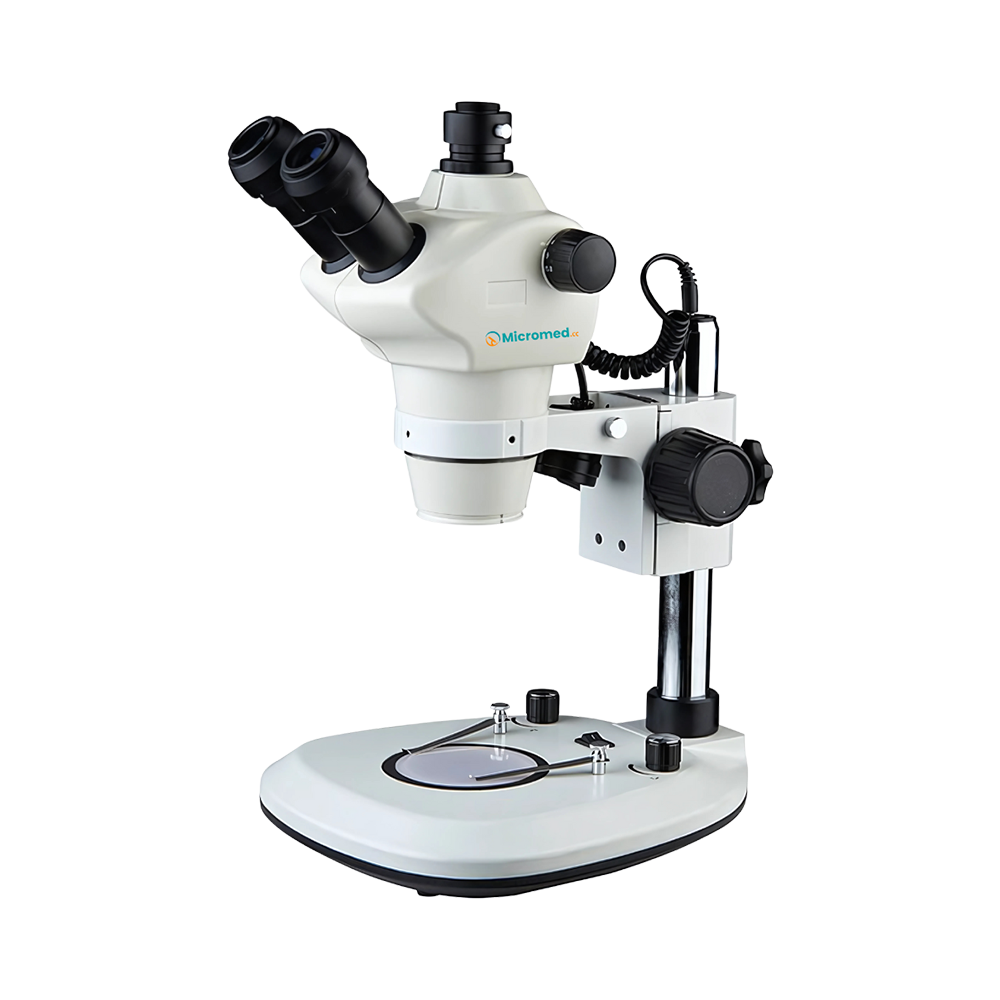

Stereo Microscope MMSM-A106 offers magnification of up to 300X. Equipped with standard eyepiece 10X/22mm providing wide and flat-field view. Feature ergonomic fully rotatable viewing head, ensuring user comfort during prolonged use. Adjustable interpupillary distance and diopter correction allow for a customized viewing experience. Our trinocular microscope is compatible with digital cameras and CCD systems.
Catalog| Viewing Head |
Trinocular Head, 45° inclination, 360° rotatable Trinocular Body: 50%/50% |
| Diopter Adjustment | +/-5 diopters |
| Interpupillary Distance | 52 to75mm |
| Eyepiece | 10X/22 mm |
| Objective |
Zoom Range: 0.8X to 5.0X Zoom Ratio: 6.3:1 |
| Total Magnification |
Standard: 8X to 50X, FOV 27.5mm to 4.4mm Optional lens: 4 to 300X, FOV 55mm to 0.8mm |
| Working Distance |
Standard: 115mm Optional lens: 43.5 to 211mm |
| Trinocular Interface | Fit with three-eye pole and CTV, it can be connected with ordinary camera, digital camera, industrial camera and CCD |
| Base | CD Base |
Fully coated optical system with super high resolution
Sharp clear images with extremely great flatness and contrast
High-eyepoint eyepieces.
Flat field parfocal zoom objectives
Multiple illumination options
Adjustable visibility
Stereo Microscope MMSM-A106 is applicable in electronics, medical research, industrial quality control, forensics, education, and jewelry inspection for detailed observation, analysis, and high-resolution imaging of small components and specimens.
