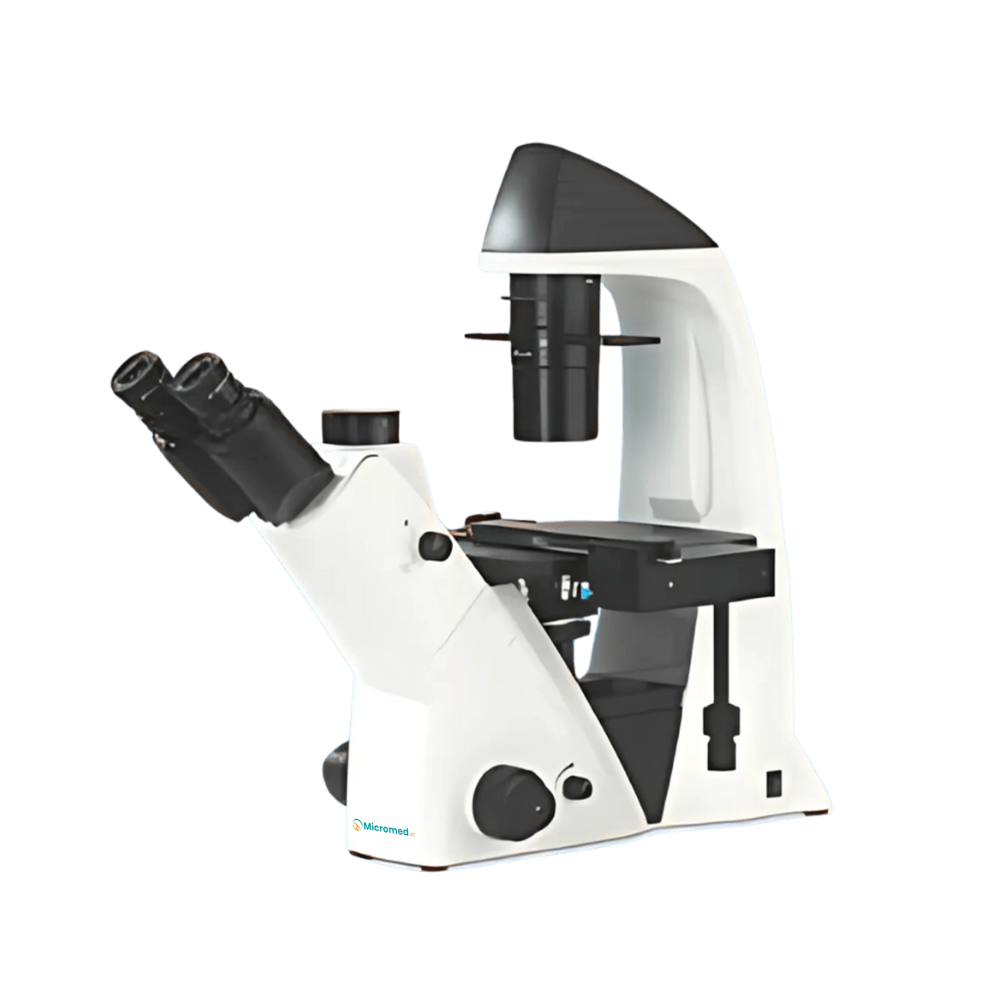

Inverted Microscope MMIM-A100 offers WF10X/22 eyepiece and LWD infinity plan objectives. Ergonomically designed trinocular head provides adjustable light distribution and supports camera integration. Built with phase contrast observation and matching annular spots. Includes quickly detachable condenser and plate-compatible stage for versatile observation. Our Microscope integrates koehler illumination, ensuring uniform, consistent brightness.
Catalog| Viewing Head | Seidentopf Trinocular Head, 45° inclined, |
| Interpupillary Distance | 48 to 76mm |
| Light Distribution | Eyepiece: Trinocular head; 100:0, 20:80 |
| Eyepiece | WF10X/22 |
| Objective |
10x/0.25, WD=8.3mm 20x/0.40, WD=7.2mm 40x/0.60, WD=3.4mm |
| Phase Contrast |
LWD Infinity plan phase contrast 20x/0.40, WD=7.2mm |
| Annular Spot | 20x/40x |
| Nosepiece | Quintuple |
| Condenser | NA0.3 |
| Working Distance with Condenser | 72mm |
| Working Distance without Condenser | 195mm |
| Stage Dimension |
241×210 mm Round Slide size: Φ118mm |
| Stage Movement Range | 128×80 mm |
| Culture Dish Holder | 54mm |
| Illumination | Koehler illumination 60V/30W (input voltage: 100V to 240V) |
| Filter |
Blue Green |
Long working distance
Quintuple nosepiece
45° inclined viewing angle
Wide interpupillary distance adjustment
Robust, corrosion-resistant platform
Smooth focusing mechanism
Inverted Microscope MMIM-A100 is employed in cell biology, IVF, microbiology, and materials inspection for observing live cells, tissues, and microorganisms in culture vessels.
