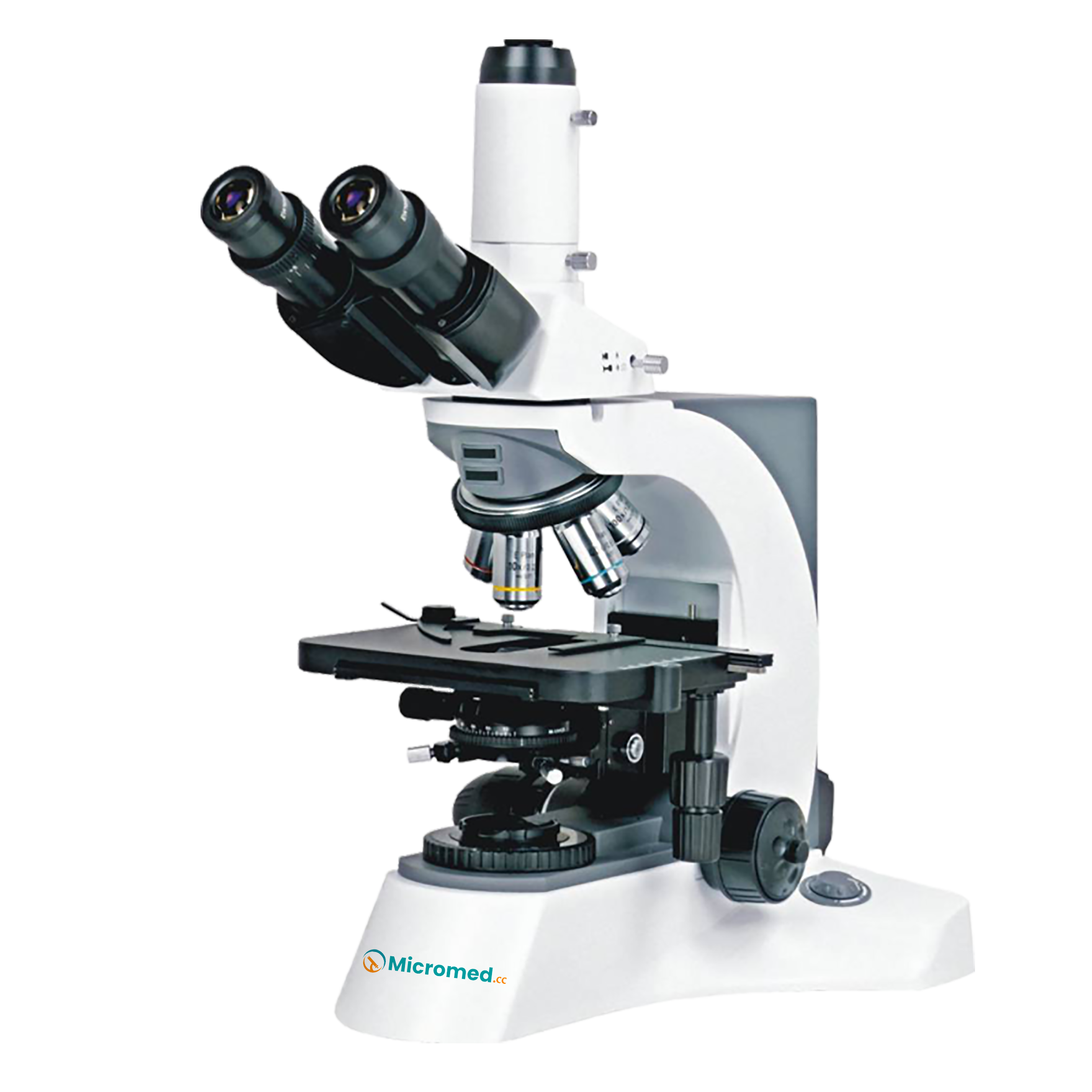

Biological Microscope MMBM-A106 provides magnification of up to 1000X for detailed observations. Built with infinite optical system, it incorporates Köhler illumination for uniform lighting. It features forward and low-position coaxial focus knobs for comfortable, efficient operation. Equipped with advanced features like optional polarization, contrast, and photo attachments. Our microscope meets research and laboratory demands with clear and versatile imaging.
Catalog| Optical System | Infinite Optical System |
| Viewing Head | Hinged type Trinocular Head, Inclined at 30° |
| Interpupillary Distance | 48 to75 mm |
| Eyepiece | EW10X/23 |
| Eyepiece Tube Diameter | 30 mm |
| Infinite Plan Achromatic Objective | 4x, 10x, 40x,100x |
| Infinite Plan Achromatic Objective | 20x,60x |
| Plan S-Apo Objective | 4x, 10x, 20x, 40x,100x |
| Nosepiece | Backward Quintuple |
| Condenser Numerical Aperture | NA 0.9/ 0.25 |
| Focusing | Coaxial Coarse and Fine Adjustment |
| Fine Division | 0.001mm |
| Stage Dimension | 185×142mm |
| Moving Range | 75×55mm |
| Kohler Illumination |
External Illumination, Asperical Collector, Halogen Lamp 6V/ 30W External Illumination, Asperical Collector, Halogen Lamp 24V/100W LED Illumination, 3W or 5W |
| Video Adapter |
C Mount 1x C Mount 0.5x |
| Dark Field Attachment |
Dark-field Condenser (Dry) Dark-field Condenser (Oil) |
| Epi-Fluorescent Attachment | Mercury lamp or LED Illumination |
Double layers mechanical stage
Tiltable trinocular head
Swing condenser
Extra wide field eyepiece
Ergonomic design
Adjustable brightness
Biological Microscope MMBM-A106 is employed for advanced imaging in research and diagnostic laboratories, enabling detailed observation of biological specimens such as cells, tissues, microorganisms, and crystalline structures.
