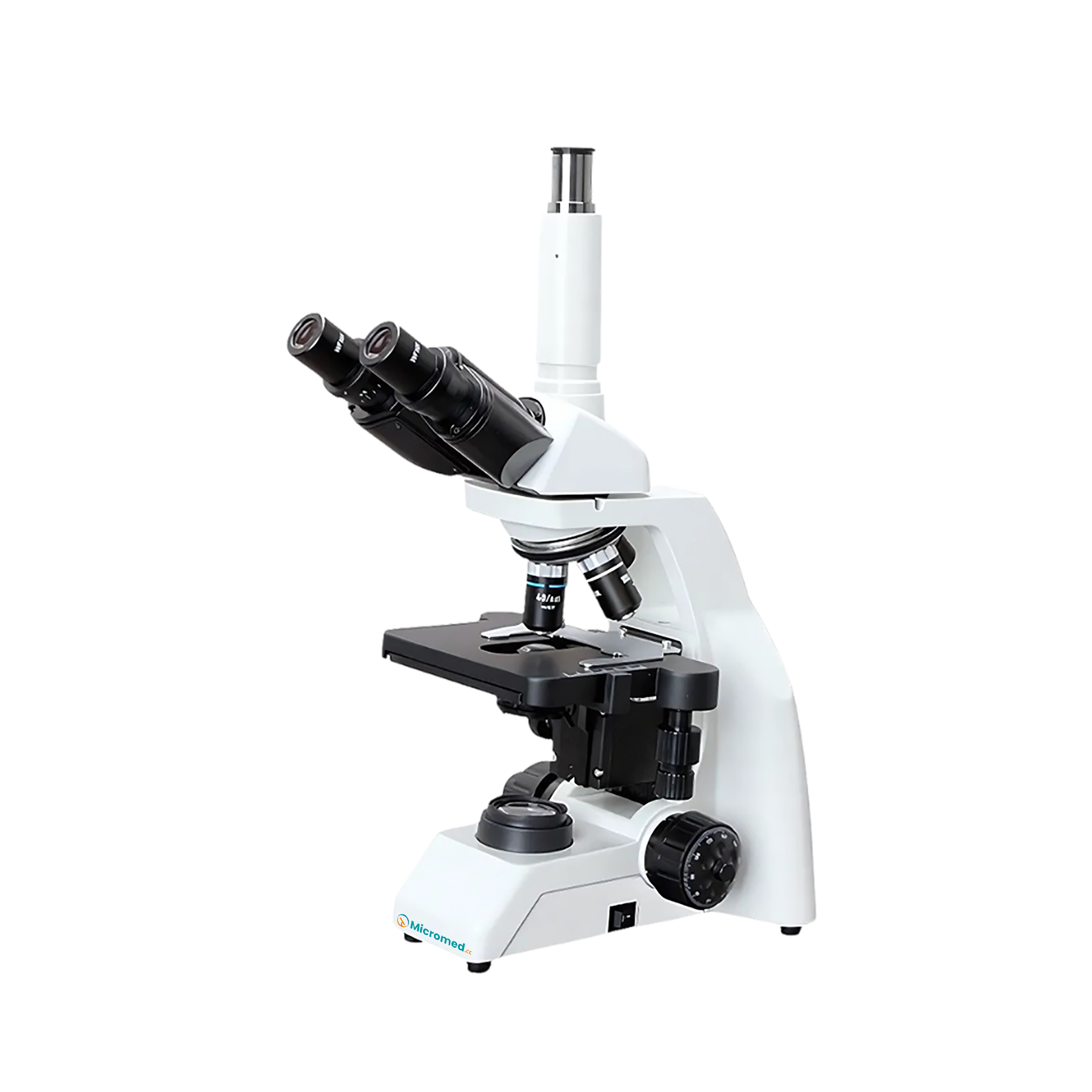

Biological Microscope MMBM-A105 offers wide-field WF10X/18 and high-magnification P16X/11 eyepieces for detailed observations. Designed with a trinocular head, providing flexibility for direct observation and digital imaging. It features double-layer mechanical stage ensuring proper sample positioning. Equipped with S-LED illumination, it delivers consistent and bright light. Our microscope with a fine focusing system of 0.004mm stroke provides exceptional clarity.
Catalog| Viewing Head | Hinged type Trinocular Head, Inclined at 30° |
| Interpupilary Distance | 5 to 75mm |
| Eyepiece |
WF10X/18 P16X/11 |
| Objective | 4X, 10X, 40X, 100X |
| Nosepiece | Backward Quadruple Nosepiece |
| Stage | 132×142mm/ 75×40mm |
| Focusing |
Fine Division 0.004mm Coarse Stroke 32.7mm per rotation Fine Stroke 0.4mm per rotation Moving Range 24mm |
| Condenser |
Abbe NA 1.20 Abbe NA 1.25 |
| Illumination |
S-LED Halogen Lamp 6V/ 20W |
Ergonomic design
Achromatic Objective
Condenser with Iris Diaphragm and Filter
Adjustable Brightness
Backward Quadruple Nosepiece
Biological Microscope MMBM-A105 allows detailed observation of cells, tissues, microorganisms, and other biological structures. It is suitable for medical laboratories, educational institutions, research institutions, biotechnology, and pharmaceutical labs.
