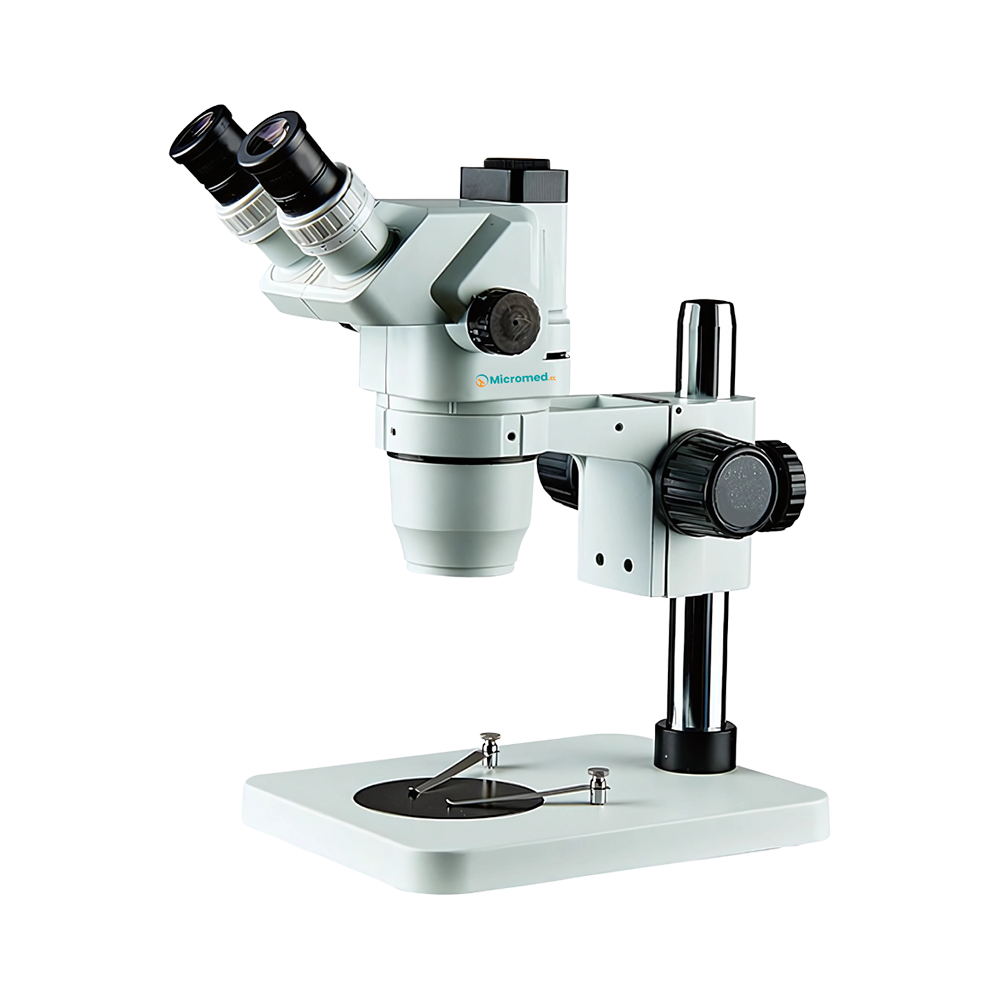

Stereo Microscope MMSM-A102 offers magnification of 6.7X to 45X, extendable from 3.35X to 270X. Built with a zoom system that maintains high image resolution and parfocality. Feature trinocular viewing head ensuring ergonomic observation and easy camera integration. Designed with extended working distance, it facilitates convenient handling of large samples. Our microscope provides multiple illuminations including halogen lamps and fluorescent ring lights.
Catalog| Viewing Head |
Trinocular Head, 45° inclined, 360° rotatable Trinocular Body: 50%/50%, with vertical phototube |
| Interpupillary Distance: | 54 to 75mm |
| Diopter Adjustment: | +/-5 diopters |
| Eyepiece | 10X/22mm |
| Objective |
Zoom Range: 0.67X to 4.5X Zoom Ratio: 6.7:1 Total |
| Magnification and Field of View |
Standard: 6.7X to 45X, FOV: 32.8mm to 4.9mm Optional lens: 3.35 to 270X, FOV: 65.7mm to 0.9mm |
| Working Distance |
Standard: 105mm Optional lens: 26 to 287mm |
| Focusing Arm |
A1 focusing bracket Handwheel's tightness is adjustable Lifting range 50mm |
| Trinocular Interface | Fit with three-eye pole and CTV, it can be connected with ordinary camera, digital camera, industrial camera and CCD |
| Base | CB1 Base |
Focusing system with adjustable handwheel
Sturdy CB1 base
High-eyepoint, wide-field eyepiece
Greater working distance
Stereo Microscope MMSM-A102 is ideal for analyzing electronic components, biological specimens, gemstones, textiles, and forensic evidence, in industries, research labs, and educational settings.
