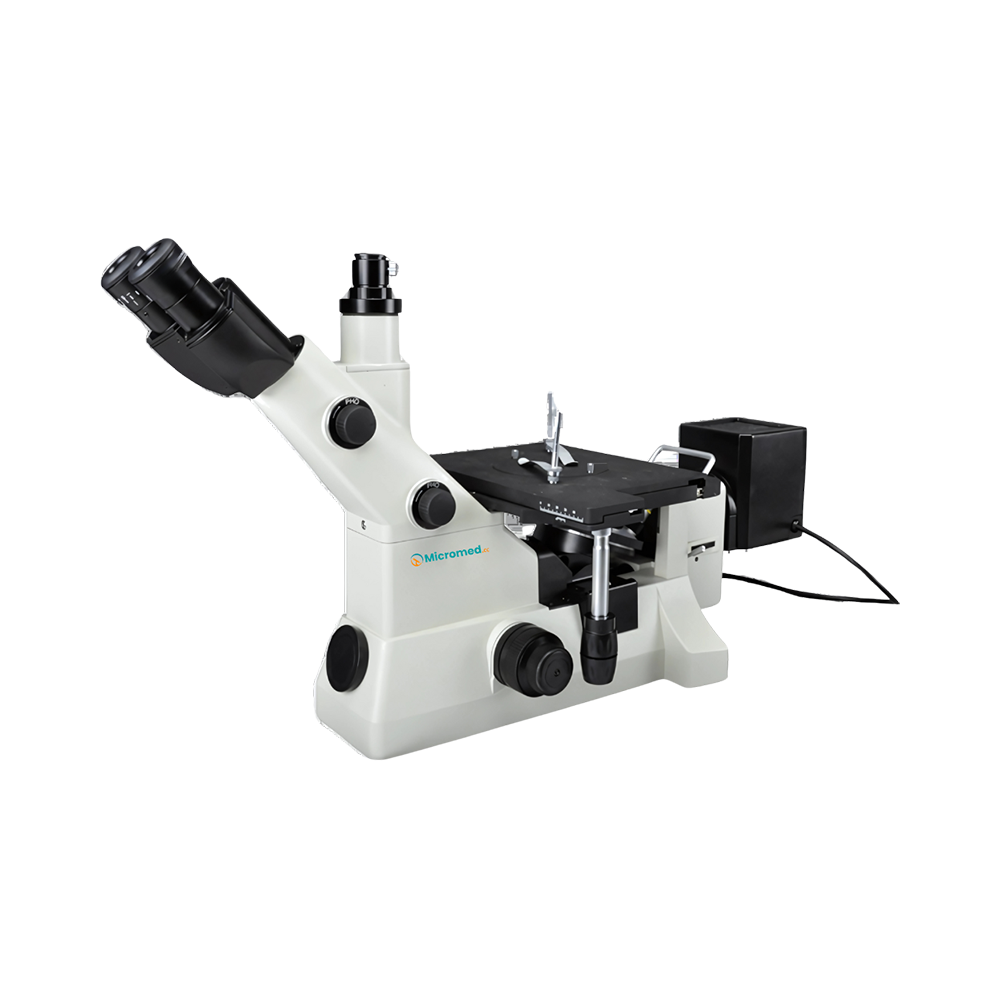

Metallurgical Microscope MMMM-A104 features WF10X/22 eyepiece and achromatic objectives for clear imaging. Its infinite optical system enhances resolution and reduces optical aberrations. Built with binocular head featuring a 30° inclination for ergonomic viewing. It offers Kohler incident light with adjustable brightness and built-in filters. Our microscope ensures smooth focusing and stable sample observation for detailed analysis
Catalog| Optical System | Infinite optical system |
| Viewing Head | Hinged-type binocular viewing head, Inclined at 30° |
| Interpupillary Distance | 48mm to 75mm |
| Eyepiece |
WF10X/22 WF10X/20 Eyepiece with Scale of Cross hair |
| Infinite LWD Plan | 5X/0.12/∞/0 (BF/DF) LWD 10mm |
| Achromatic Objective |
10X/0.25/∞/0 (BF/DF) LWD 10mm 20X/0.4/∞/0 (BF/DF) LWD 5mm 50X/0.75/∞/0 (BF/DF) LWD 1.3mm 100X/0.9/∞/0 (BF/DF) LWD 0.7mm |
| Nosepiece | Backward Quintuple Nosepiece |
| Stage |
Dimension 226×178mm Moving range 40mm×40mm Stage Φ20, Φ30, Teardrop |
| Focusing | Coaxial coarse and fine adjustment |
| Fine Division | 2 μm |
| Kohler Incident Light |
12V/50W Halogen light Polarizer and analyzer Built-in Green, Blue, Yellow, Gray and ground glass |
| Micrometer Scale | 0.01mm |
Double-layer mechanical stage
Extra wide field eyepiece with scale of cross hair
Ergonomic design
Backward quintuple nosepiece
Easily upgradable for DIC viewing
Metallurgical Microscope MMMM-A104 is employed in material science, metallurgical analysis, and industrial research for examining metals, alloys, ceramics, semiconductors, and other solid materials.
