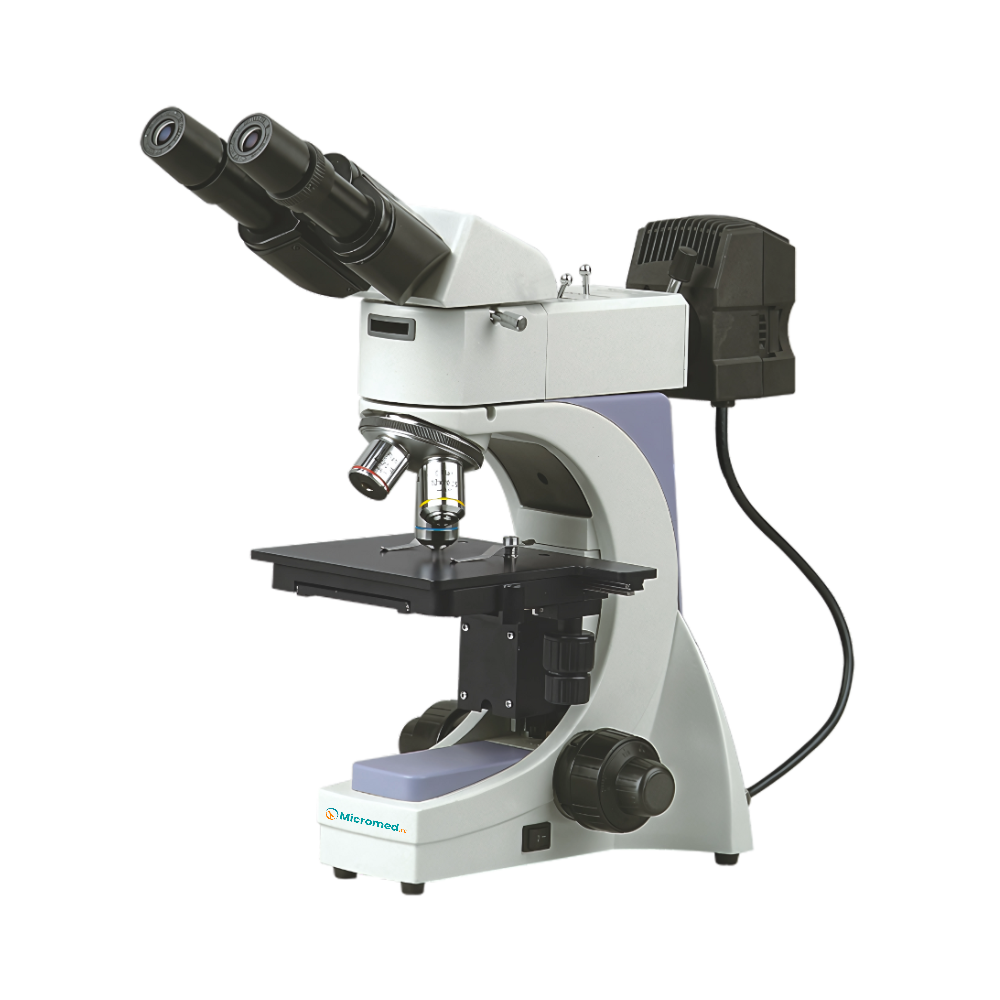

Metallurgical Microscope MMMM-A108 offers wide-field eyepieces and objectives ranging from 2.5X to 100X. Designed with infinite optical system, delivering sharp and high-quality imaging. Features kohler illumination system with halogen or LED lighting for high-intensity illumination. Built with quadruple nosepiece allowing seamless magnification transitions. Our microscope complemented by color filters and polarization set ensures enhanced contrast.
Catalog| Optical System | Infinite optical system |
| Viewing Head | Hinged type binocular head |
| Eyepiece |
WF10X/18 WF8X/18 WF10X/18 with 0.1mm Micrometer & crosshair WF12.5X/15 |
| Objective |
2.5X/0.08/∞/- WD 11.7mm 2.5X/0.08/∞/- WD 10.7mm（λ slide） 4X/0.1/∞/- WD17.3mm 5X/0.12/∞/- WD15.5mm 10X/0.25/∞/- WD10.0mm 20X/0.40/∞/0 WD5.8mm 40X/0.60/∞/0 WD2.90mm 50X/0.75/∞/0 WD0.32mm 100X/0.80/∞/0 WD2mm |
| Nosepiece | Quadruple nosepiece |
| Stage | 150×140mm/75×50mm |
| Focusing | Coaxial fine and coarse adjustment |
| Illumination |
Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen lamp Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 3W LED illumination Diascopic Illumination, 6V/20W Halogen lamp |
| Filters |
Blue Green Yellow Ground glass |
| Metallurgical Specimen Preparation | Specimen Presser |
High magnification objective with long working distance
Infinitive plan achromatic objectives
Double-layer mechanical stage
Illumination with adjustable brightness
Metallurgical Microscope MMMM-A108 is designed for advanced material analysis in industrial and research applications. It is ideal for examining metal structures, coatings, composite materials, and semiconductor components.
