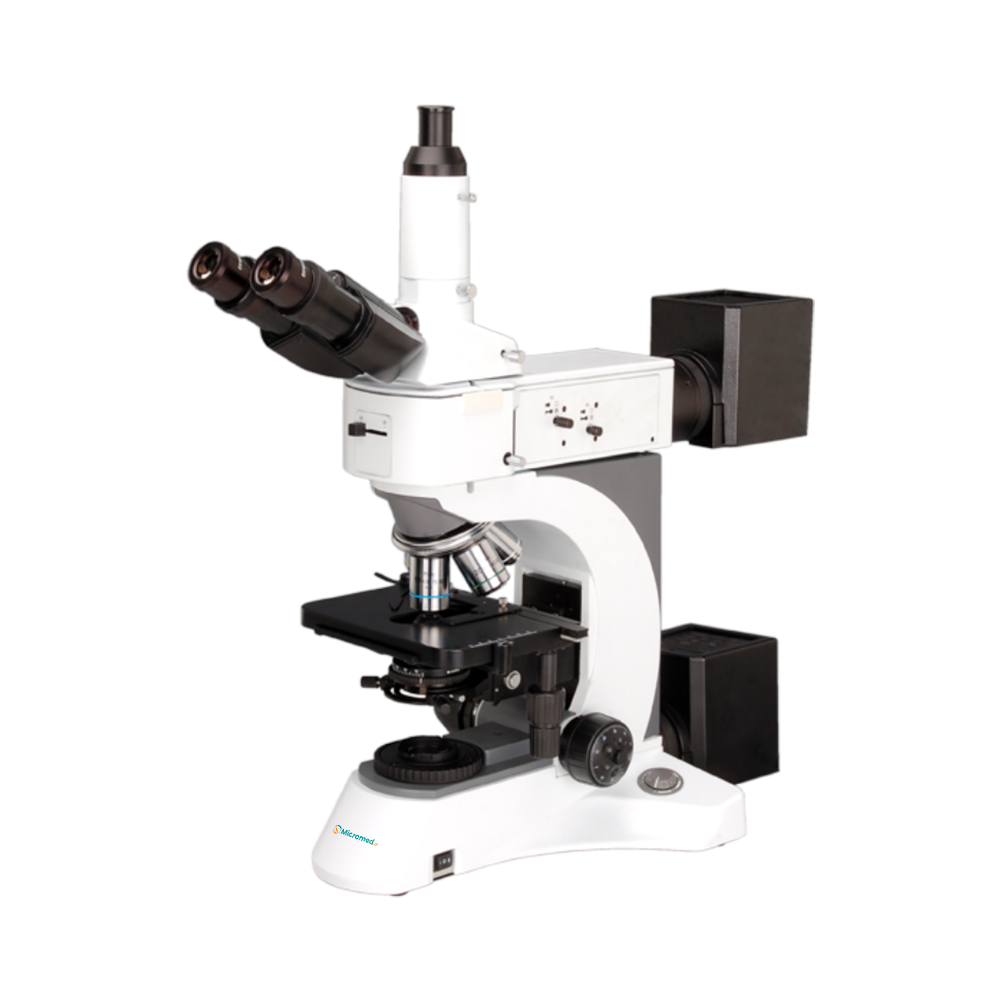

Metallurgical Microscope MMMM-A103 offers infinite optical system and extra-wide field eyepieces EW10X/22. Incorporates both incident and transmitted light sources, including a swing-out condenser. Features a 24V/100W halogen light with Kohler illumination and adjustable brightness. Built with smooth and refined focusing system for effortless controlling. Our microscope ensures flexibility for diverse imaging and analysis needs.
Catalog| Optical System | Infinite optical system |
| Viewing Head | Hinged type trinocular viewing head, inclined at 30° |
| Interpupillary Distance | 48mm to 75mm |
| Eyepiece | EW10X/22 |
| Objective |
10X/0.25/∞/- (BF/DF) WD 10.0mm 20X/0.4/∞/0 (BF/DF) WD 4.30mm 40X/0.65/∞/0.17 WD 0.54mm 100X/1.25/∞/0.17 WD 0.13mm 5X/0.12/∞/- (BF/DF) WD 12mm 50X/0.75/∞/0 (BF/DF) WD 0.32mm 100X/0.8/∞/0 (BF/DF) WD 2mm |
| Maximum Sample Height | 30 mm |
| Nosepiece | Backward Quintuple Nosepiece |
| Stage |
Double layer mechanical stage 186×138mm/ 74mm×50mm Specimen preparation plate Slide glass |
| Focusing |
Coaxial coarse and fine adjustment Fine division 1μm Moving range 30mm |
| Incident Light |
24V/100W Halogen light Kohler illumination and aspherical condenser Blue, Green, Yellow and Ground glass |
| Transmitted Light |
Swing-out condenser NA0.9/0.25 Halogen light 24V/100W and aspherical condenser Blue filter |
Infinite plan achromatic objectives
Superior image resolution
Double-layer mechanical stage
Bright field,dark field and polarization observation
Metallurgical Microscope MMMM-A103 is ideal for both metallurgical and biological sample analysis. It is extensively employed in metallurgy, geological studies, material science, forensic science, and electronics manufacturing for analyzing metals, composites, semiconductors, thin films, and semi-transparent materials, such as glass and polymers.
