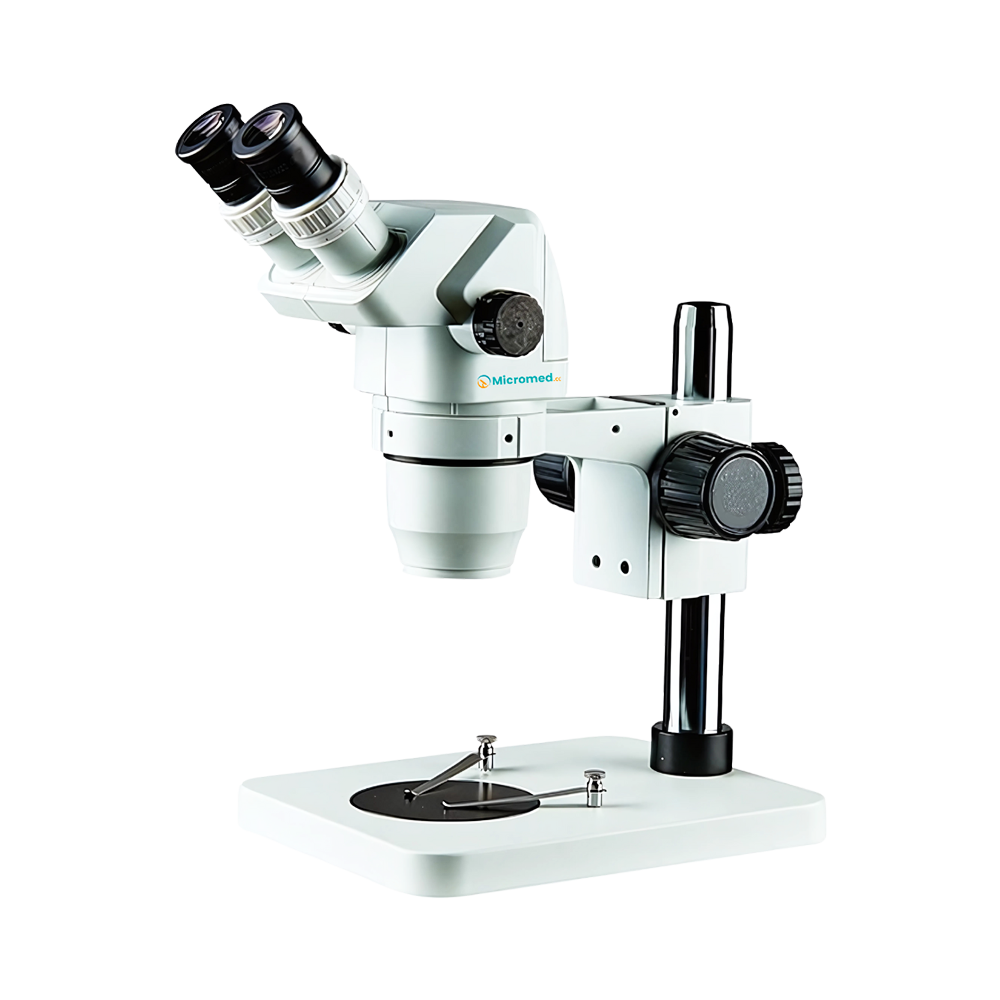

Stereo Microscope MMSM-A101 offers magnification extendable up to 270X. Equipped with a high-eyepoint, wide-field eyepiece, it provides a comfortable viewing experience. Features 360° rotatable binocular viewing head ensuring ergonomic observation. Built with smooth zoom mechanism that maintains parfocality of the image plane. Our microscope with greater working distance provides ample space for sample manipulation.
Catalog| Viewing Head | Binocular Head, 45° inclined, 360° rotatable |
| Interpupillary Distance: | 54 to 75mm |
| Diopter Adjustment: | +/-5 diopters |
| Eyepiece | Standard: 10X/22mm |
| Objective |
Zoom Range: 0.67X to 4.5X Zoom Ratio: 6.7:1 Total |
| Magnification and Field of view |
Standard: 6.7X to 45X, FOV: 32.8mm to 4.9mm Optional lens: 3.35 to 270X, FOV: 65.7mm to 0.9mm |
| Working Distance |
Standard: 105mm Optional lens: 26 to 287mm |
| Focusing Arm |
A1 focusing bracket Lifting range: 50mm |
| Base | CB1 Base |
Multiple illumination options
Focusing system with adjustable handwheel
High-resolution images
Ergonomic design
Sturdy CB1 base
Stereo Microscope MMSM-A101 is employed in industries, biomedical research, forensics, gemology, education, and agriculture for inspection, quality control, and detailed analysis.
