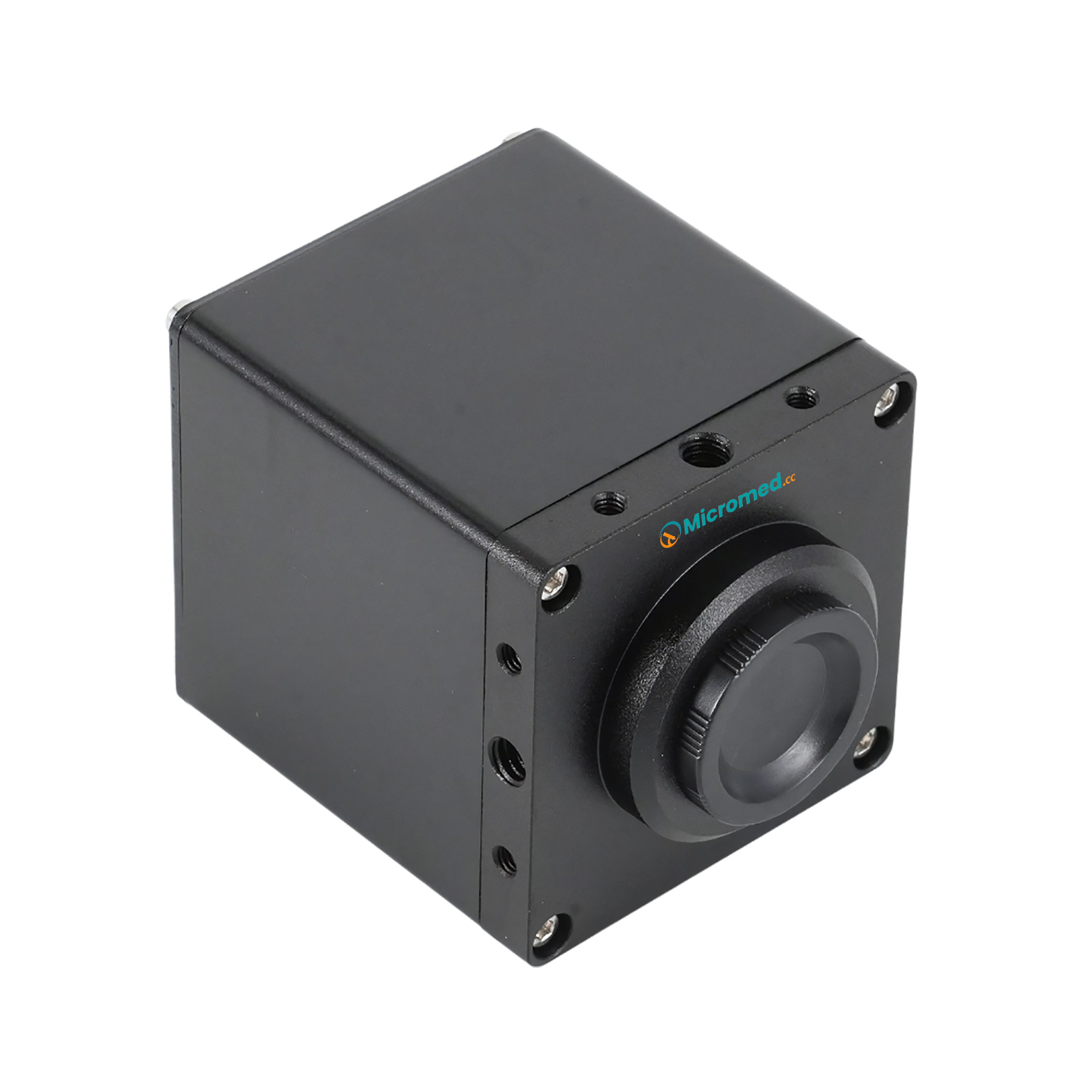

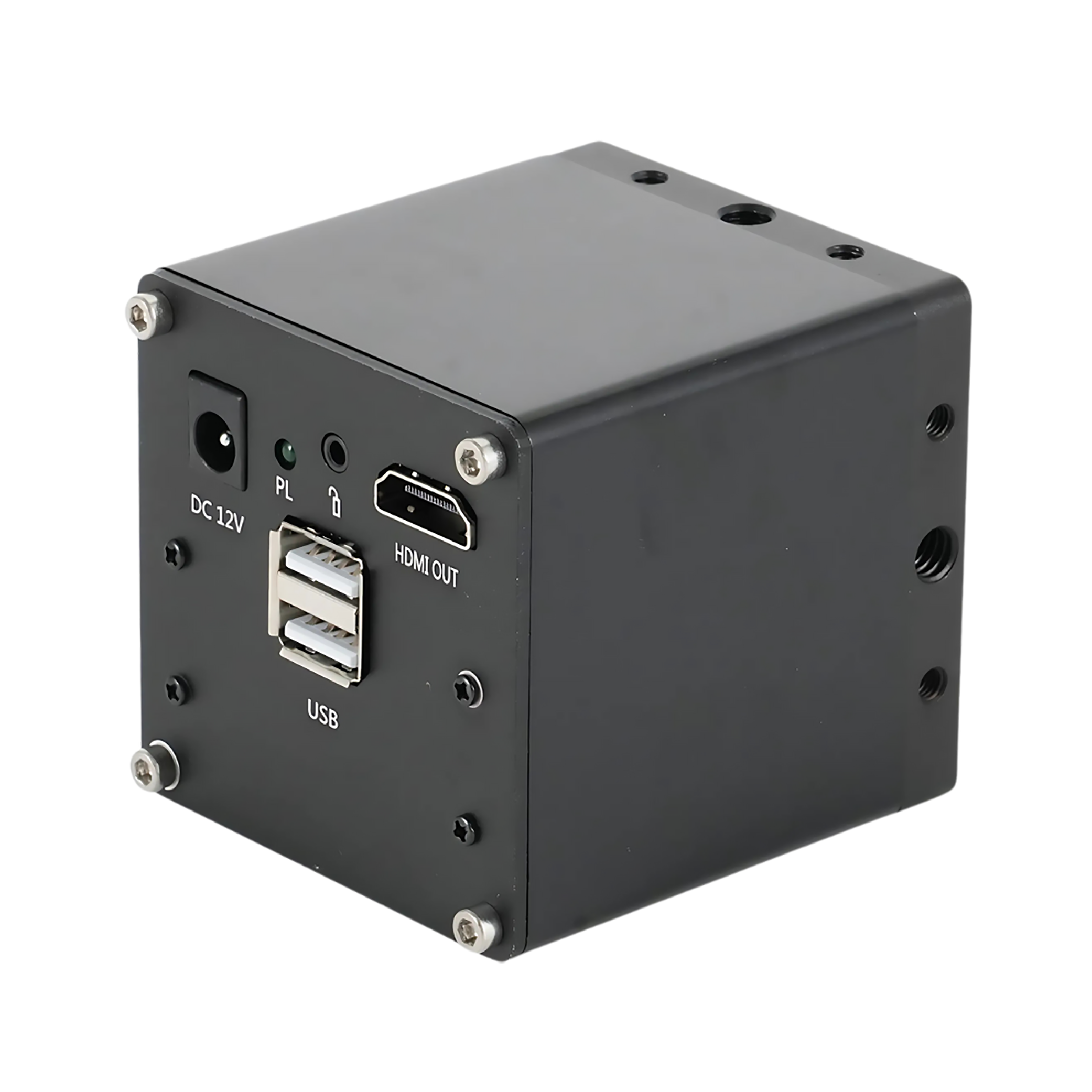

Microscope Camera MMMC-A104 delivers 5.0MP resolution for sharp and detailed imaging. Built with wide dynamic range, ensuring balanced exposure across varying light conditions. Equipped with advanced measuring function, supporting multiple geometric measurement tools. Features HDMI digital transmission for high-definition real-time imaging. Our HD camera incorporates dual USB interfaces for seamless connectivity and efficient data transfer.
Catalog| Resolution | 5.0 MP |
| Effective Pixels | 2560H×1920V |
| Frame Rate | 60 fps |
| Chip Structure | FPGA+ARM |
| Inner-Core Structure | Dual-core Corter-A9 |
| Frequency Speed | 6.66 Ghz |
| Operation System | LINUX 3.10 |
| Optical Size | 1/2〞 |
| Picture Storage | U disk storage |
| Horizontal and Vertical Moving Line | 32 |
| Operation Temperature | -10℃ to 70℃ |
| Power Input | DC12V |
| Dimension | 61 × 61 × 72 mm |
| Weight | 350 g |
Auto and one-key white balance
Edge enhancement
Center cross-line superposition
With color/black and white conversion
USB or wireless mouse operation
Mirror image inversion and image comparison function
Microscope Camera MMMC-A104 is ideal for microscopy imaging, measurement, and analysis in research, industrial inspection, and educational applications.
