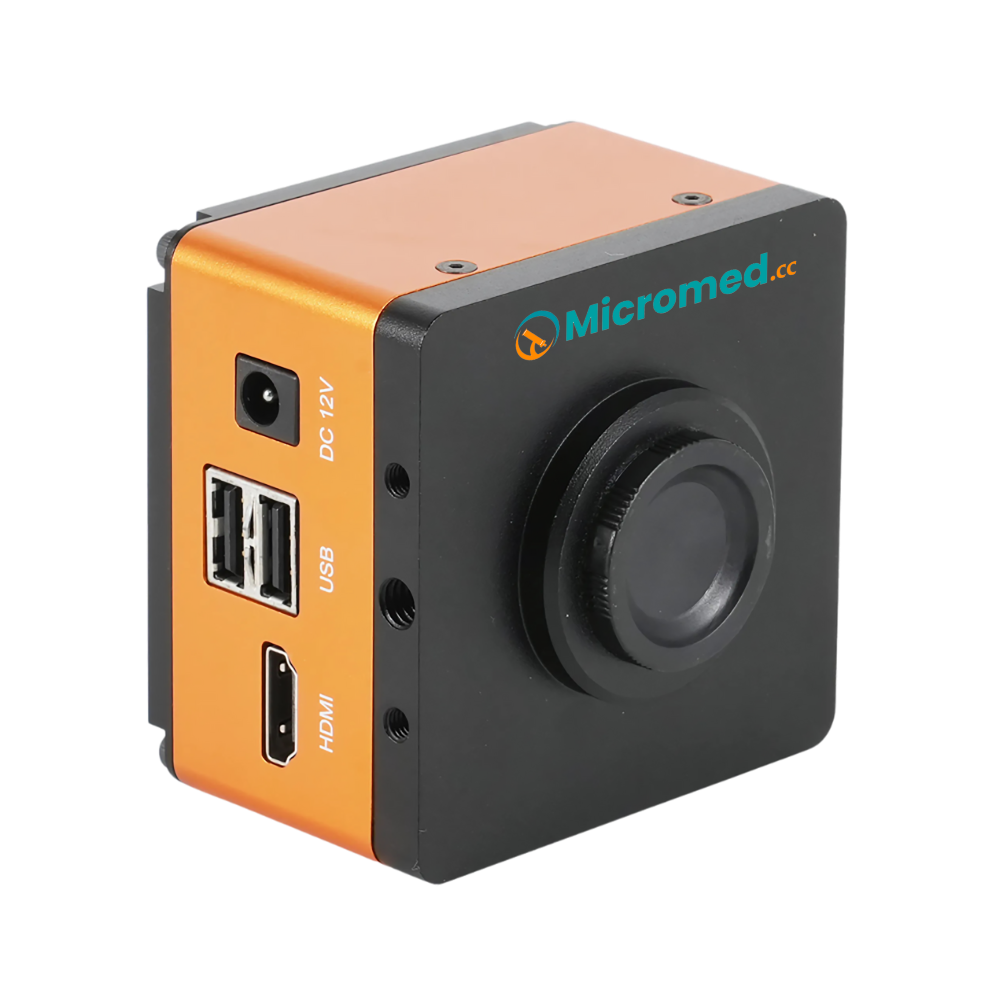

Microscope Camera MMMC-A106 delivers 8.0MP resolution with 30fps frame rate for smooth imaging. Built with ARM Cortex-A9 inner-core structure, ensuring smooth performance and efficient processing. Features HDMI digital output for real-time high-resolution display. Equipped with strong light suppression and edge enhancement for enhanced image clarity. Our camera supports dual USB interface for seamless device connectivity.
Catalog| Resolution | 8.0 MP |
| Effective Pixels | 3840×2160 (4K) |
| Frame Rate | 30 fps |
| Chip Structure | XILINX ZYNQ |
| Inner-core Structure | ARM COTEX A9 + FPGA |
| Operation System | LINUX |
| Frequency Speed | 666 Mhz |
| Optical Size | 1/1.8〞 |
| Color Adjustment | R, G, B |
| Internal Cross Lines | 32 moveable lines |
| Lens Mount | Type C |
| Strong Light Suppression | Level 3 |
| Edge Enhancement | Level 4 |
| Operation Temperature | 0℃ to 70℃ |
| Power Input | DC 12 to 24V |
| Dimension | 70 × 70 × 40 mm |
| Weight | 450 g |
One-key white balance adjustment
Independent color adjustment
U disk storage
HDR wide dynamic range
Internal cross lines
Microscope Camera MMMC-A106 is widely employed for high-resolution imaging and real-time analysis in scientific research, industrial inspections, and medical applications.
