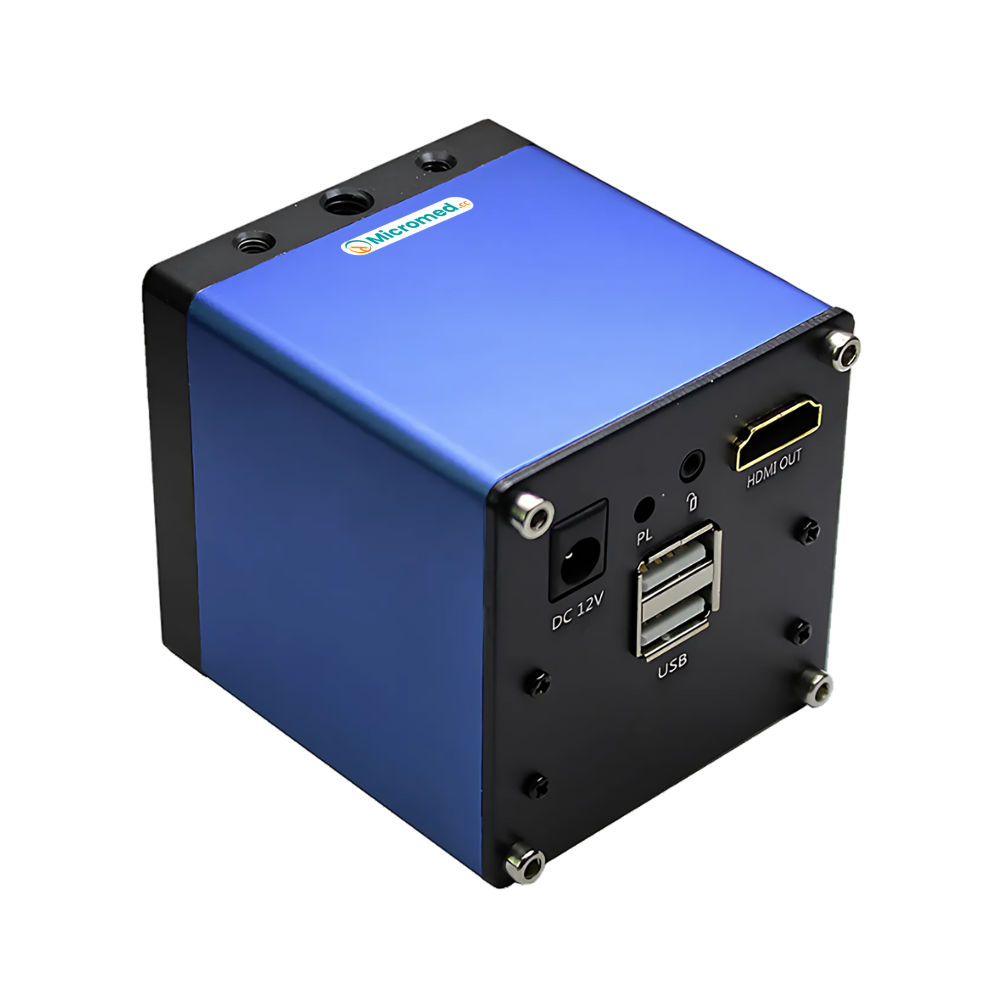

Microscope Camera MMMC-A105 delivers 5.0MP resolution for detailed and sharp imaging. Built with multi-core processor cortex-A9, ensuring efficient and smooth performance. Features internal cross lines with 32 moveable lines for seamless alignment. Equipped with strong light suppression and edge enhancement for improved clarity. Our camera supports dual USB connectivity for easy device integration.
Catalog| Resolution | 5.0 MP |
| Effective Pixels | 2560H×1920V |
| Frame Rate | 60 fps |
| Chip Structure | FPGA+ARM |
| Inner-Core Structure | Dual-core Corter-A9 |
| Operation System | LINUX 3.10 |
| Frequency Speed | 1 Ghz |
| Optical Size | 1/2〞 |
| Color Adjustment | R, G, B |
| Lens Mount | Type C |
| Internal Cross Lines | 32 moveable lines |
| Strong Light Suppression | Level 3 |
| Edge Enhancement | Level 4 |
| Operation Temperature | -10℃ to 70℃ |
| Power Input | DC 5 to 12V |
| Dimension | 61 × 61 × 72 mm |
| Weight | 350 g |
HDMI digital output interface
High dynamic range
White balance with one click
Independent color adjustment
SD card storage
Microscope Camera MMMC-A105 is widely employed in scientific research, industrial inspections, and medical applications. It is ideal for documenting biological samples, conducting forensic analysis, material analysis, and quality control.
