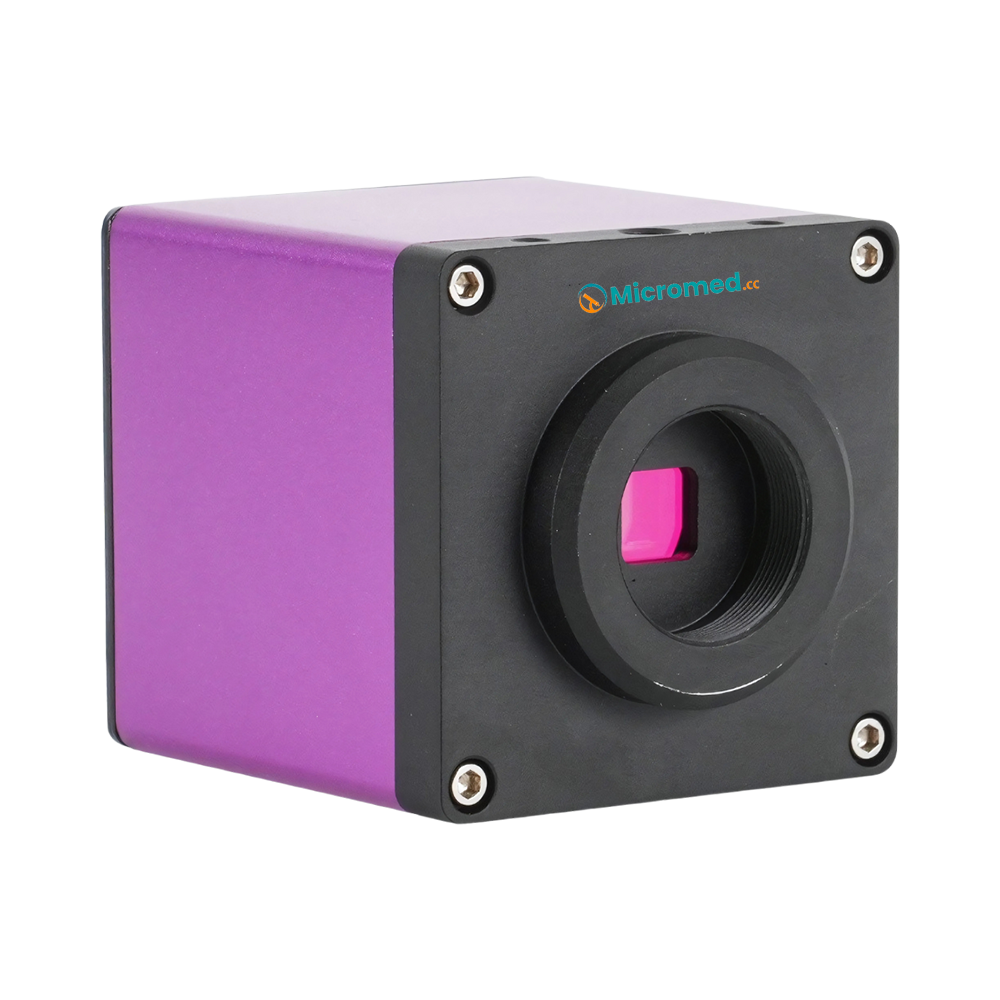

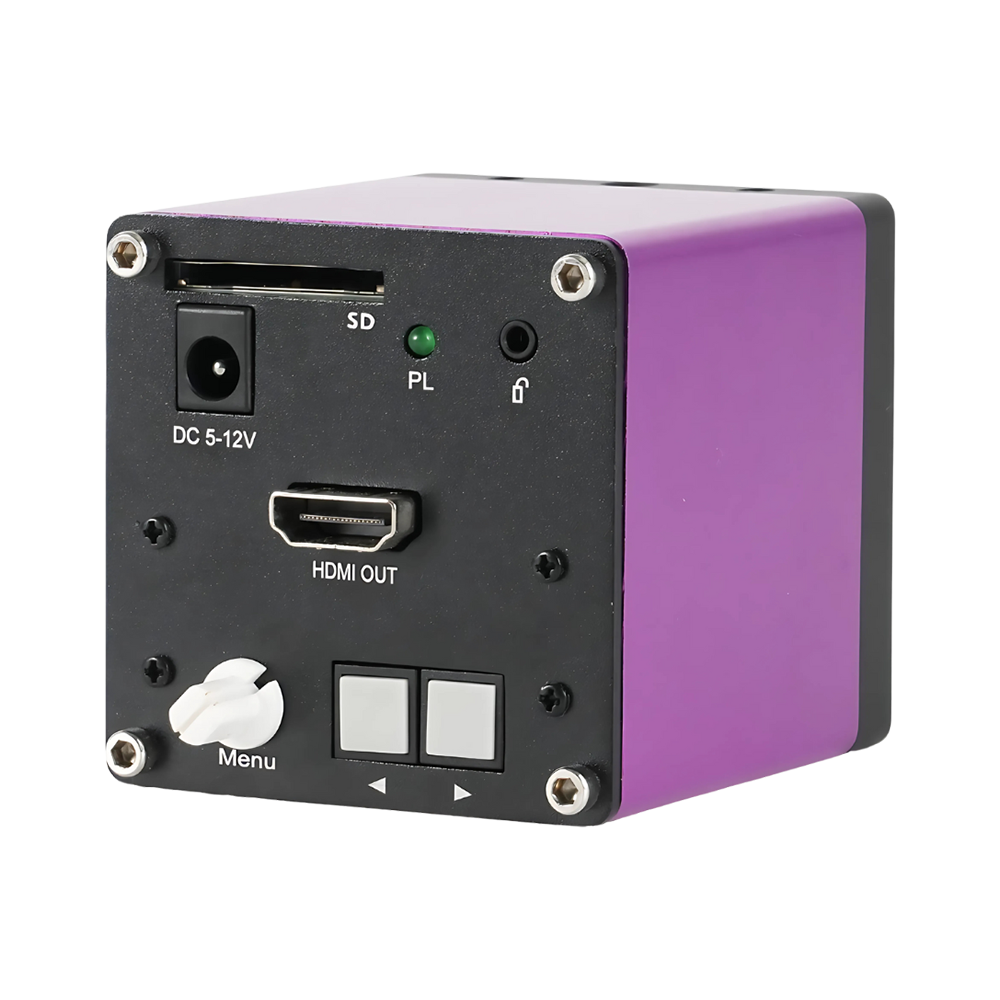

Microscope Camera MMMC-A103 delivers 5.0MP resolution with 2560H×1920V effective pixels. Built with dual-core architecture, ensuring high-speed processing and seamless operation. Equipped with HDMI output for clear and detailed imaging on high-definition displays. Features independent color adjustment, allowing fine-tuned image optimization. Our camera includes intuitive interface with SD card storage for efficient data management.
Catalog| Resolution | 5.0 MP |
| Effective Pixels | 2560H×1920V |
| Frame Rate | 60 fps |
| Chip Structure | FPGA+ARM |
| Inner-Core Structure | Dual-core Corter-A9 |
| Frequency Speed | 6.66 Ghz |
| Operation System | LINUX 3.10 |
| Optical Size | 1/2〞 |
| Interface | SD card slot |
| Color Adjustment | R, G, B |
| Internal Cross Lines | 8 moveable lines |
| Output Interface | HDMI digital output |
| Lens Mount | Type C |
| Strong Light Suppression | Level 3 |
| Edge Enhancement | Level 4 |
| Operation Temperature | -10℃ to 70℃ |
| Power Input | DC 5 to 12V |
| Dimension | 61 × 61 × 72 mm |
| Weight | 350 g |
White balance with one click
Strong light suppression
Automatic exposure adjustment
High dynamic range
Microscope Camera MMMC-A103 is ideal for biological research, medical diagnostics, industrial inspection, education, and forensics, providing high-resolution imaging, real-time video and documentation.
