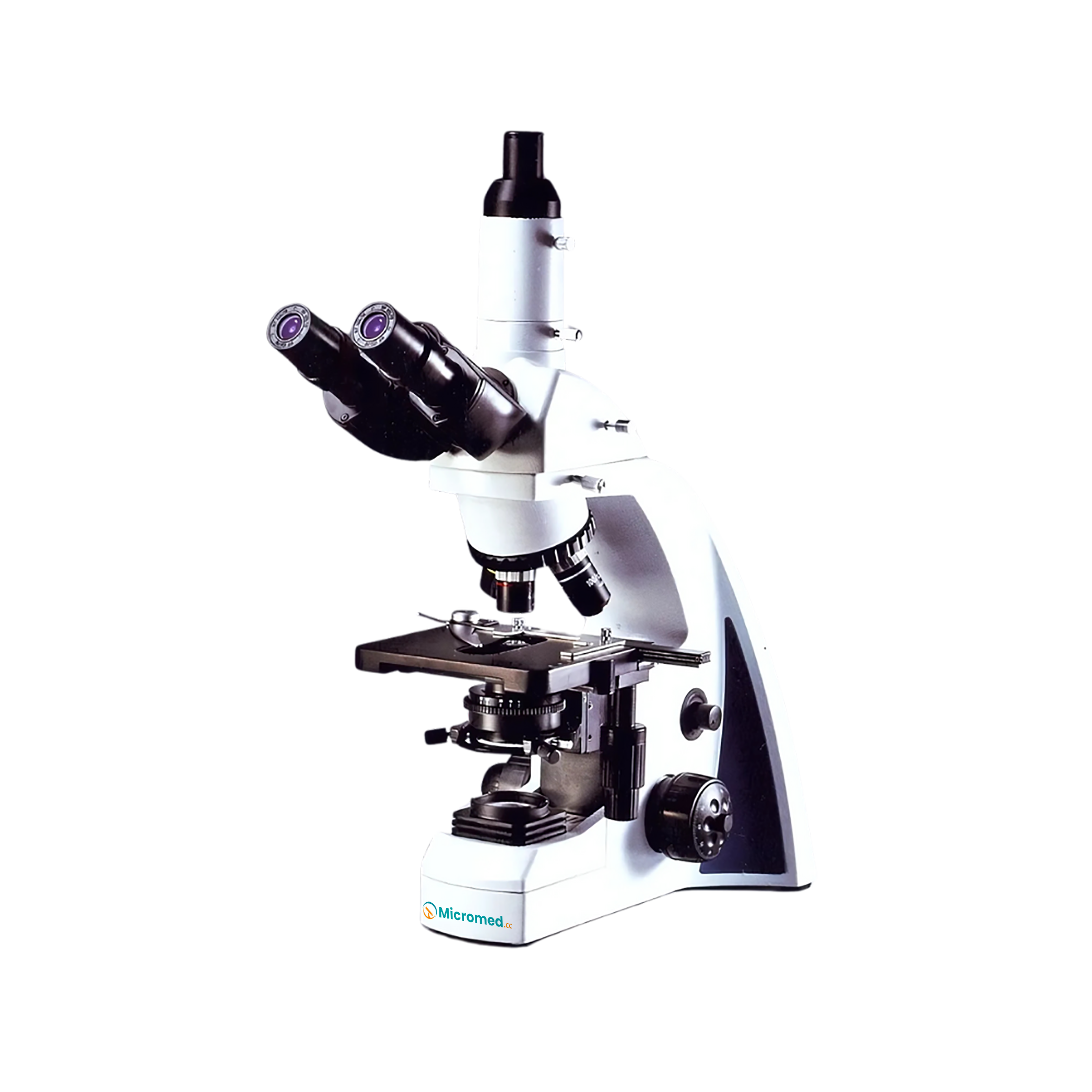

Biological Microscope MMBM-A101 offers a magnification range from 10x to 1000x. Features infinite optical system and trinocular viewing head. Equipped with semi-plan and plan achromatic objectives to ensure excellent resolution. Its sliding-in centerable condenser enhances illumination control for crystal-clear imaging. Our microscope with meticulously engineered coarse and fine focusing system allows smooth adjustments.
Catalog| Optical System | Infinite Optical System |
| Viewing Head | Hinged type Trinocular Viewing Head, 30° Inclined |
| Interpupillary Distance | 48 to 75mm |
| Eyepiece |
WF10X/18 P16X/11 |
| Objective |
Infinitive plan / semi-plan achromatic objectives 4X,10X,40X,100X |
| Nosepiece | Quadruple |
| Focusing System |
Fine Division: 0.002mm Coarse Stroke: 37.7mm per rotation Fine Stroke: 0.2mm per rotation Moving Range: 20mm |
| Condenser Numerical Aperture | NA1.25 |
| Stage Dimension | 140mm×140mm |
| Stage Movement Range | 75mm×50mm |
| Illumination |
S-LED 6V/ 20W Halogen Lamp |
| Fluorescent Attachment |
YX-2 FL-LED |
| Temperature Control System | 5W LED Illumination |
| Temperature Controlling Range | Room temperature to 50℃ |
Superior image quality
Wide-field and Extra-wide eyepieces
Double-layer mechanical stage
Adjustable lighting
Diopter adjustment
Biological Microscope MMBM-A101 is suitable for a variety of biological, clinical, and industrial applications. It is ideal for analyzing a wide range of biological samples including cells, tissues, microorganisms, and other biological structures.
