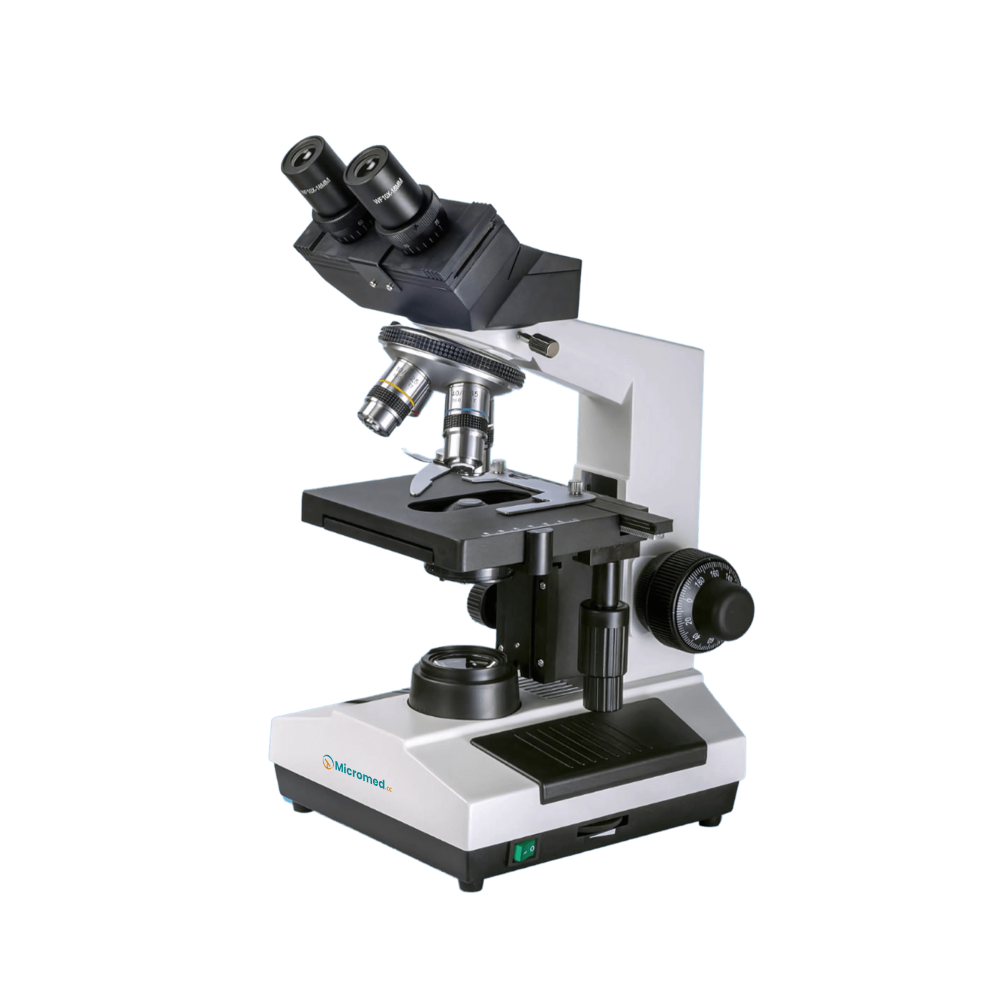

Student Microscope MMSTM-A100 offers WF10X/18mm eyepieces and achromatic objectives for clear, distortion-free viewing. Features sliding-type binocular head inclined at 30° for comfortable observation. Built-in abbe condenser includes iris diaphragm and filter for enhanced contrast control. Equipped with double-layer mechanical stage offering smooth positioning. Our Microscope incorporates 3W LED light source with adjustable brightness for optimal illumination.
Catalog| Viewing Head | Sliding Type Binocular Viewing Head, Inclined at 30° |
| Eyepiece | WF10X/18 mm |
| Objective | 4X, 10X, 40X(s), 100X(s, oil) |
| Nosepiece | Quadruple |
| Focusing Range | 30 mm |
| Focusing Interval | 0.002 mm |
| Condenser | NA1.25 |
| Stage Dimension | 140×132mm |
| Stage Movement Range | 75×45 mm |
| Illumination | 3W LED |
| Filter | Blue |
| Fuse | BGX1-20 (1A) |
Click-stop quadruple nosepiece
Coaxial coarse and fine focusing system
Ergonomic structure
Wear-resistant anti-corrosive design
High-resolution imaging
Student Microscope MMSTM-A100 is widely employed in educational institutions for cell or tissue observation, microbial studies, material analysis, pollen and spore examination, blood smear analysis, and introductory histology or pathology training.
